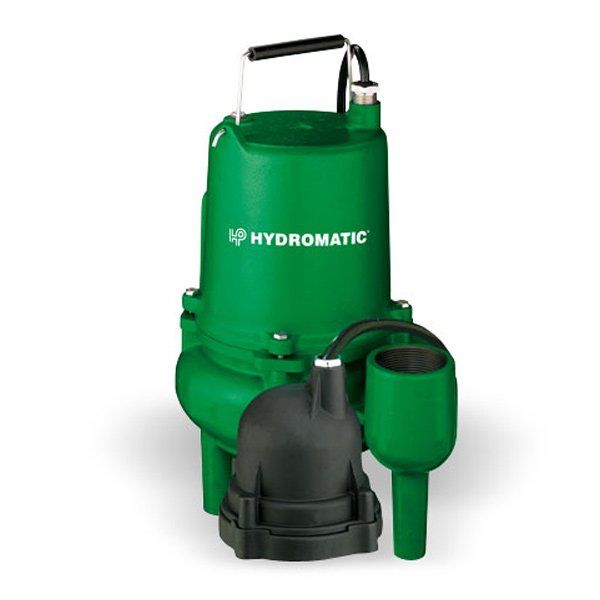

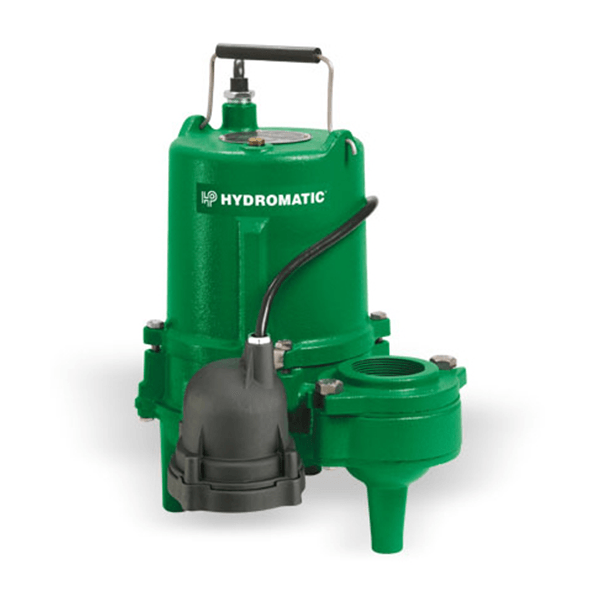

Pentair Hydromatic SP Sewage Pump

Pentair Hydromatic SP Series Sewage Pump: Specifically designed to meet the demands of handling wastewater and sewage in residential and commercial building applications.

Please contact us for a quote



  • Description

    SP Series Sewage Pump

    Specifically designed to meet the demands of handling wastewater and sewage in residential and commercial building applications.

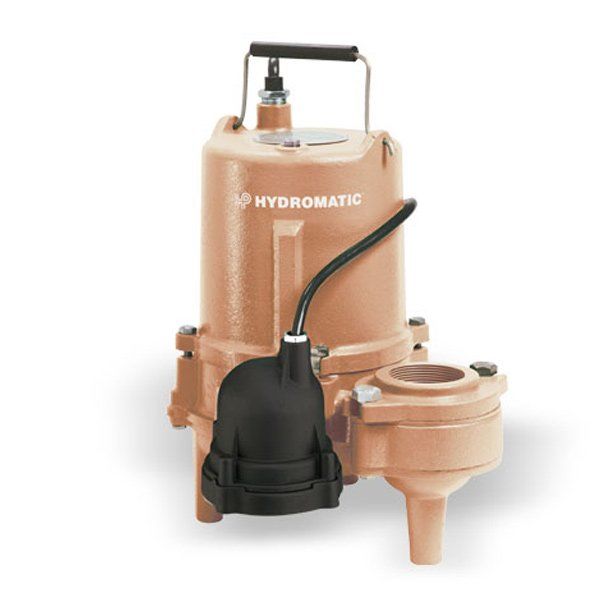

    • BODY CONSTRUCTION:  Class 30 Cast Iron (SP50AB models are naval bronze)
    • HORSEPOWER:  Available in 4/10 or 1/2 HP
    • MAXIMUM HEAD:  SP40: 25′ / SP50: 28′
    • MAXIMUM CAPACITY:  SP40: 140 GPM / SP50: 148 GPM
    • FLOW at 10′ LIFT:  SP40: 112 GPM / SP50: 132 GPM
    • SWITCH TYPE:  Available With or Without Diaphragm Pressure Switch
    • MINIMUM SUMP DIAMETER:  18″ for simplex / 30″ for duplex
    • DISCHARGE PIPE SIZE:  SP40: 2″ NPT / SP50: 2” NPT (3” opt.)
    • MAXIMUM SOLIDS HANDLING SIZE:  SP40: 1-1/4″ / SP50: 1-1/2″
    • AMP DRAW (full load):  See Spec Sheet (Model, HP, and Voltage Dependent)
    • CORD LENGTH:  10′ SJTW (20′ optional)
    • VOLTAGE:  Available in 115v/230v 1-phase OR 200V, 230V, 460V, or 575V 3-phase
    • MAXIMUM WATER TEMPERATURE:  140 degrees F (60 degrees C)
    • MOTOR:  4/10 or 1/2 HP PSC with Thermal Overload Protection
    • IMPELLER CONSTRUCTION:  SP40 is Thermoplastic / SP50 is Cast Iron
  • Additional information

    Pump Type Sewage Pumps
    Series SP, SP40, SP50
    Manufacturer Hydromatic
    Models
    ,
    ,
    Horsepower 1/2, 4/10
  • Technical Data

  • Parts

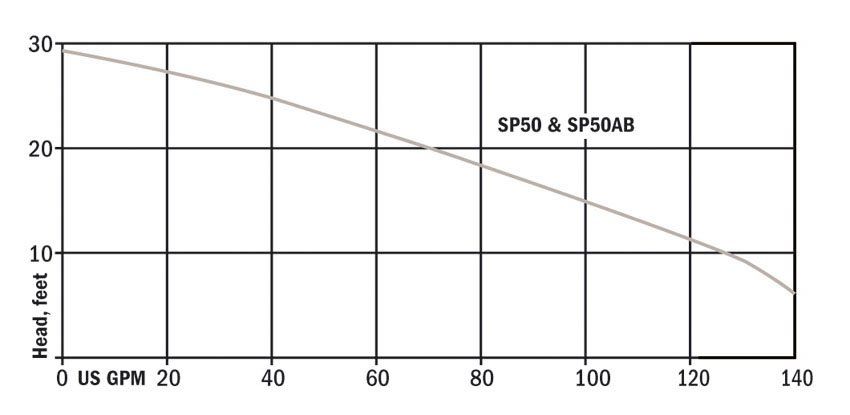

  • Performance Curves
