Hydromatic

S3S Series

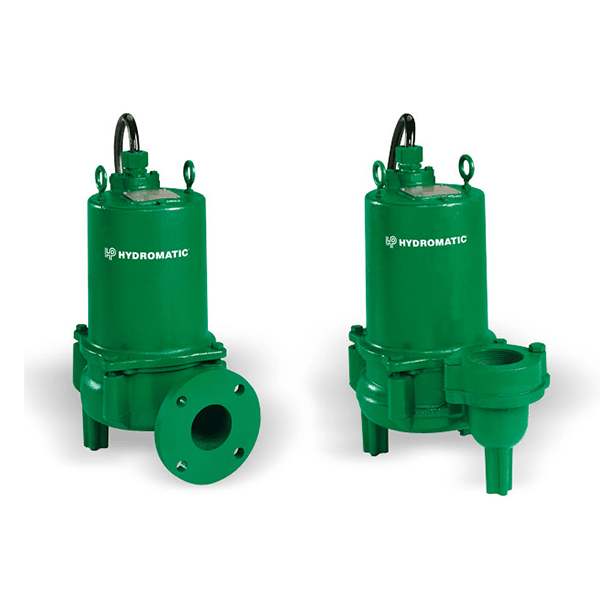

Pentair Hydromatic S3S Series Sewage Pumps: Cast iron and engineered thermoplastic body construction, available in 1-1/2, 2, or 3 HP, 1-phase or 3-phase, 2.5″ maximum solids handling size, 40' maximum head.

Please contact us for a quote



  • Description

    S3S Series

    • Body Construction:  Cast Iron & Engineered Thermoplastic
    • Horsepower:  Available in 1-1/2, 2, OR 3 HP
    • Maximum Head:  40′
    • Maximum Capacity:  335 GPM (21.1 LPS) (3 HP)
    • Flow at 10′ Lift:  300 GPM (using 2 HP as average)
    • Switch Type:  Control Panel Required
    • Minimum Sump Diameter:  Simplex: 24″ (609.6 mm)
    • Discharge Pump Size:  3″ NPT vertical OR 3″ flanged horizontal optional)
    • Maximum Solids Handling Size:  2.5″ (63.5 mm)
    • AMP Draw (full load):  HP and Voltage Dependent — See Spec Sheets for Details
    • Cord Length:  35′ STW
    • Voltage:  Available in 208-230V -phase OR 208-230V/460-575V 3-phase
    • Maximum Water Temperature:  140 F (60 C)
    • Phase:  1-phase or 3-phase (voltage dependent)
    • Impeller:  1-phase or 3-phase (voltage dependent)
  • Additional information

    Pump Type Sewage Pumps
    Series S3S
    Manufacturer Hydromatic
    Models
    • Technical Data
    • S3S
    • Performance
    • S3S
    • Parts
    • S3S
    ,
  • Parts

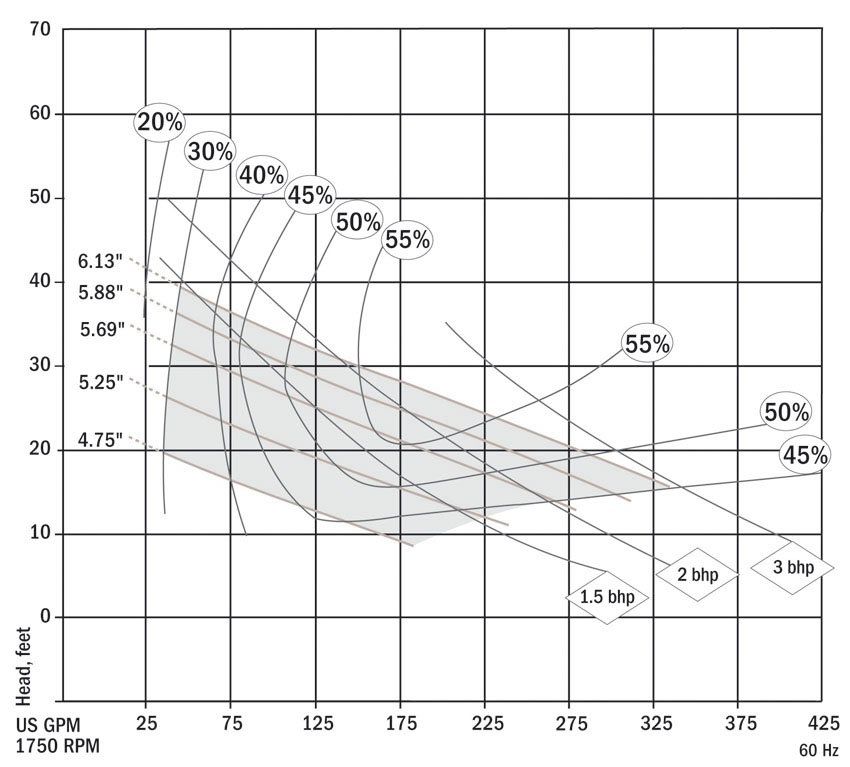

  • Performance Curves

Quick Data Select
