Hydromatic

S4S Series

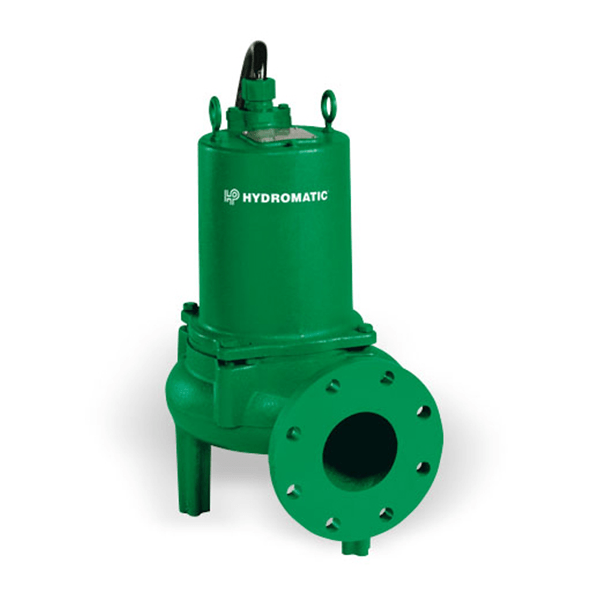

Pentair Hydromatic S4S Series Sewage Pump: Class 30 cast iron body, available in 1/2 to 3 HP, 1-phase or 3-phase (voltage dependent), class 30 cast iron non-clog impeller, 3.5″ solids handling size

Please contact us for a quote



  • Description

    S4S Series

    • BODY:  Class 30 Cast Iron
    • HORSEPOWER:  Available in 1/2 through 3 HP
    • MAXIMUM HEAD:  55′
    • SWITCH:  Control Panel Required
    • MINIMUM SUMP DIAMETER:  30″ for simplex
    • DISCHARGE SIZE:  4″ NPT vertical (4″ flanged horizontal optional)
    • SOLIDS HANDLING:  3.5″
    • CORD LENGTH:  35′ STW cable
    • VOLTAGE:  208-230v OR 460-575v
    • MAXIMUM (intermittent) LIQUID TEMP:  140 degrees F (60 degrees C)
    • PHASE:  1-phase or 3-phase (voltage dependent)
    • IMPELLER:  Class 30 Cast Iron Non-Clog
  • Additional information

    Pump Type Sewage Pumps
    Series S4S
    Manufacturer Hydromatic
