Description

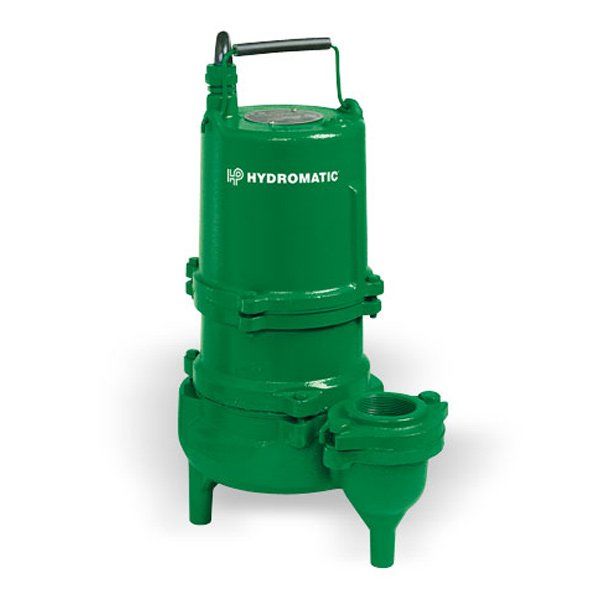

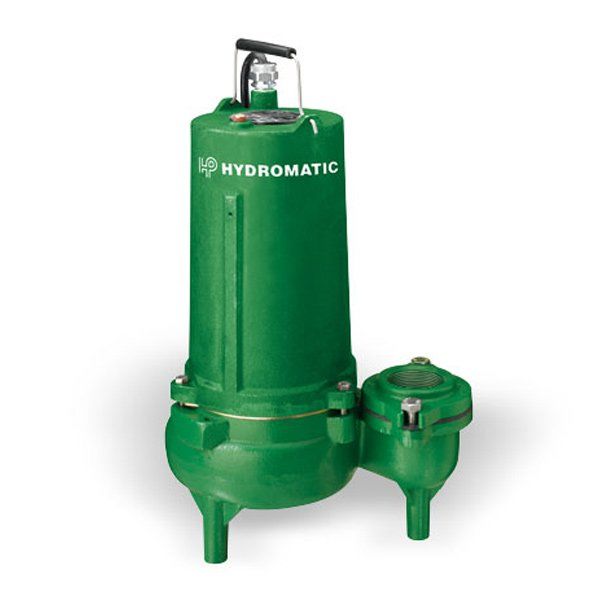

SK Series

• BODY CONSTRUCTION:  Class 30 Cast Iron
• HORSEPOWER:  Available in 1/2, 1, 1-1/2, and 2 HP
• MAXIMUM HEAD:  SKHS200: 75 ft. (22.9 m)
• MAXIMUM CAPACITY:  SKHS200: 175 GPM (11.0 LPS)
• FLOW at 10′ LIFT:  10′ of Head is Below Recommended Head for This Series

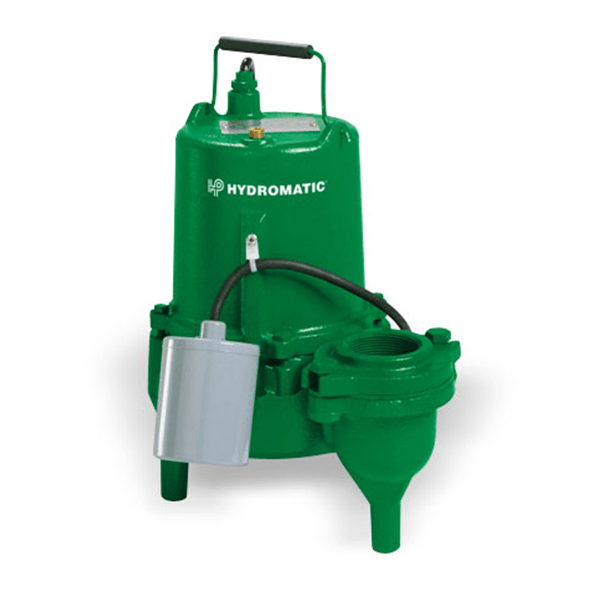

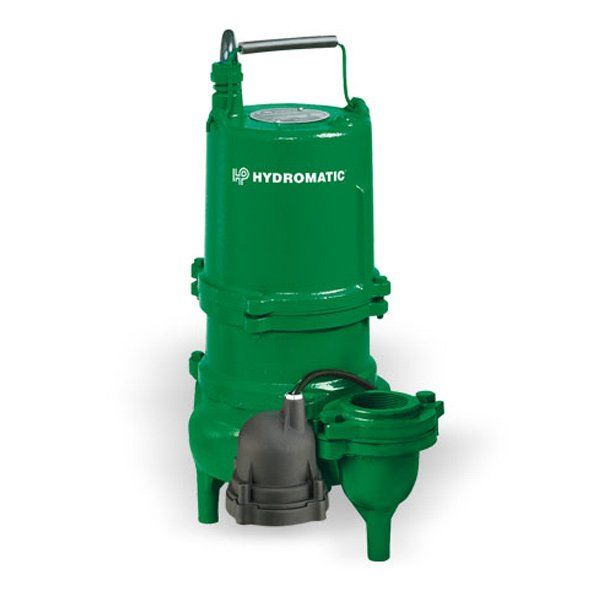

• SWITCH TYPE:  Wide-angle Tethered Float Switch OR Manual Operation (model dependent)
• MINIMUM SUMP DIAMETER:  Simplex: 18″ / Duplex: 30″
• DISCHARGE PIPE SIZE:  2″ NPT (3″ NPT optional)
• MAXIMUM SOLIDS HANDLING SIZE:  2″
• AMP DRAW (full load):  Model and Voltage Dependent – See Spec Sheet For Details
• CORD LENGTH:  10′ SJTW (20′ optional)
• VOLTAGE:  115v or 230v in 1- or 3-phase (model dependent)
• MAXIMUM LIQUID TEMPERATURE:  130 degrees F (54 degrees C)
• MOTOR:  split phase with thermal overload. Cap Start on higher horsepowers
• IMPELLER CONSTRUCTION:  Class 30 Cast Iron

Additional information

Technical Data

• • SK50 Series Technical Data
  • SK60 Series Technical Data
  • SK75-100 Series Technical Data

Parts

• SK50 Series Parts
• SK60 Series Parts
• SK75-SK100 Series Parts (Single and Three Phase)

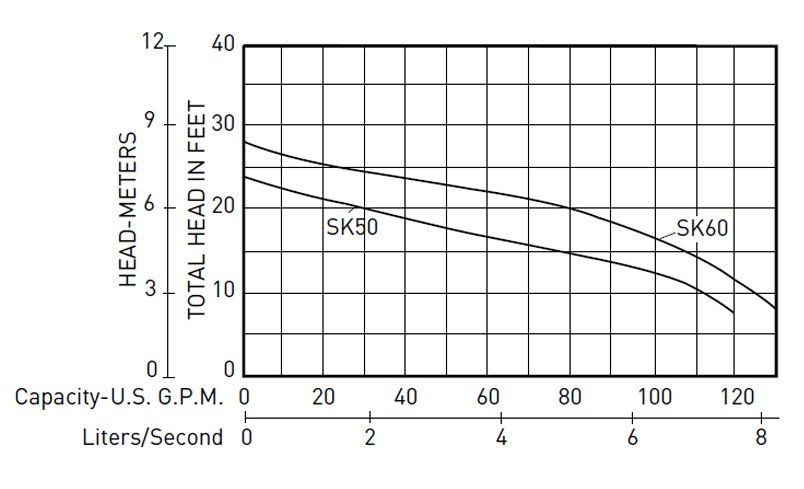

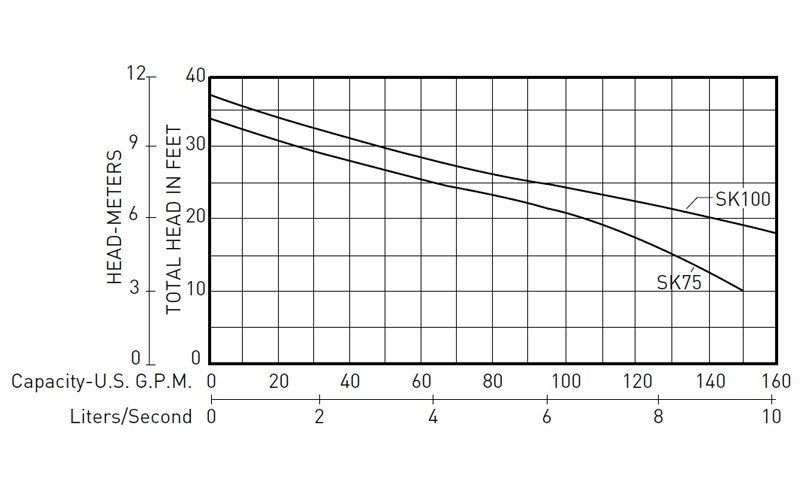

Performance Data
