Description

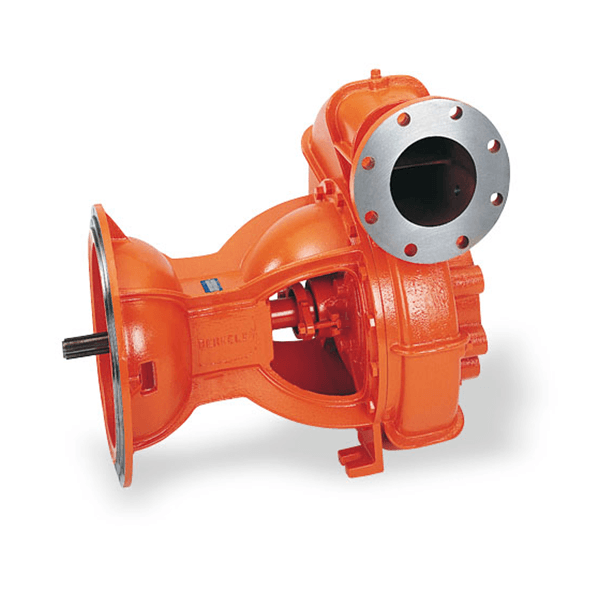

The new standard in full-performance reliability…BERKELEY® S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry’s longest life cycles.

Key Features

• Twenty-eight pump models, with flows to 6500 GPM, Pressures to 500 feet (215 psig).
• Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.

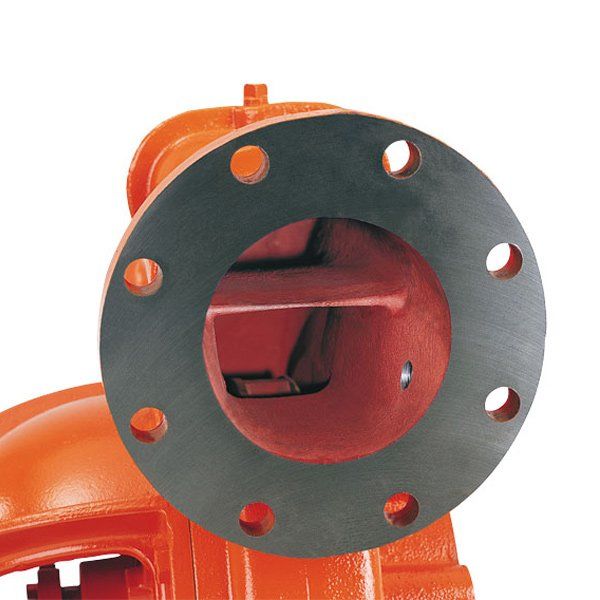

• Volute case – Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.

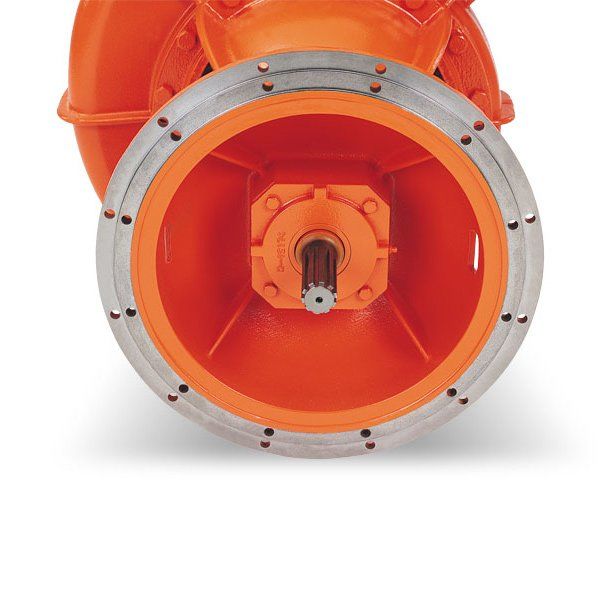

• Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
• Dry-Run Seal option available

Additional information

Technical Data

• • SAE Technical Data

Parts

• B3TQKLS Parts
• B3TQMS-14 Parts
• B3TQMS-18 Parts
• B3ZQM Parts
• B3ZQMS-30 Parts
• B4EQM Parts
• B4EXQBLS Parts
• B4EYQBH Parts
• B4EYQBM Parts
• B4GQBH Parts
• B4JQBH Parts
• B4ZQKLS Parts
• B5EQBH Parts
• B5EXQBHS Parts
• B5ZQBH Parts
• B6EXQBH Parts
• B6EXQBL Parts
• B6EXQBM Parts
• B6JQBL Parts
• B6JQBM Parts
• B6XTQBH Parts
• B6ZQBHH Parts
• B6ZQH Parts
• B6ZQHS, B6ZQL Parts
• B6ZQL Parts
• B8JQBH Parts
• B10GQBM Parts
• B10JQBH Parts
• B1-1-2EQL Parts
• B1-1-2TQMS-8 Parts
• B1-1-2TQMS-9 Parts
• B1-1-2TQMS-11 Parts
• B1-1-2TQMS-14 Parts
• B1-1-2ZQLS-14 Parts
• B1-1-2ZQLS-18 Parts
• B1-1-2ZQM Parts

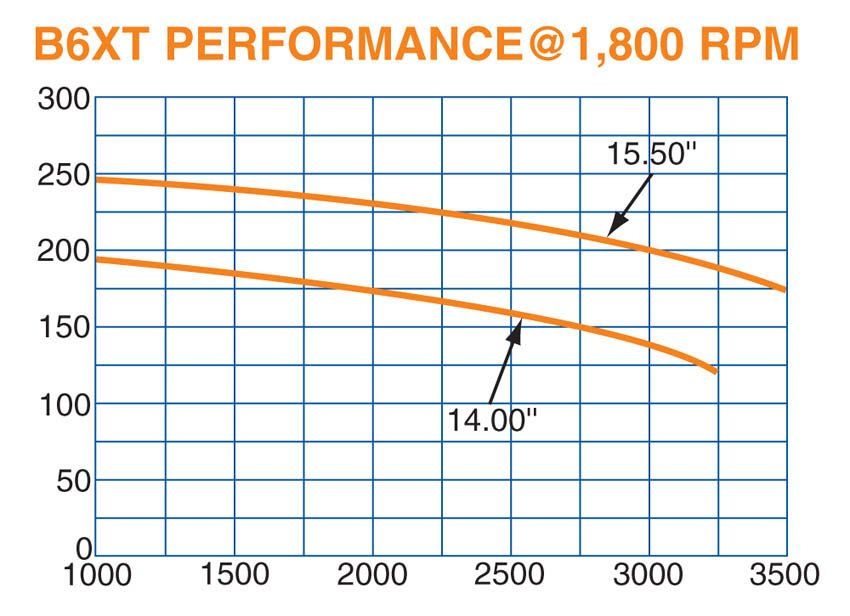

Performance Data
