Hydromatic

SD50 Series

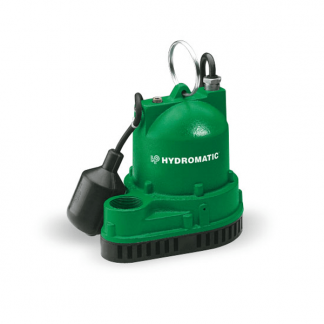

Pentair Hydromatic SD50 Series Sump Pumps: 1/2 HP Cast Iron, Diaphragm Switch, Durable 1/3 and 1/2 HP submersible sump pumps, Oil-Filled Motor with Automatic Reset Thermal Overload, uses Single-Row Ball Bearing Construction, Piggyback Plug for Easy Maintenance and Replacement

Please contact us for a quote



  • Description

    Sump Pump 1/2 HP Cast Iron, Diaphragm Switch

    Durable 1/3 and HP submersible sump pumps.

    • Carbon-Ceramic Mechanical Shaft Seal
    • Oil-Filled Motor with Automatic Reset Thermal Overload
    • Uses Single-Row Ball Bearing Construction
    • Piggyback Plug for Easy Maintenance and Replacement

    Key Features

    • SWITCH: Diaphragm Pressure Switch
    • POWER CORD: 10′, SJTW (20′ optional)
    • MAXIMUM SOLIDS HANDLING: 3/4″
    • DISCHARGE SIZE: 1-1/2″ NPT
    • IMPELLER CONSTRUCTION: Thermoplastic
    • BODY CONSTRUCTION: Cast Iron & Engineered Thermoplastic
    • MINIMUM SUMP DIAMETER: 12″
    • MOTOR: 1/2 HP / Shaded Pole / 1550 RPM / 115v / 12 full-load amps
  • Additional information

    Manufacturer Hydromatic
    Series SD Series, SD50
    Models
  • Technical Data

  • Parts

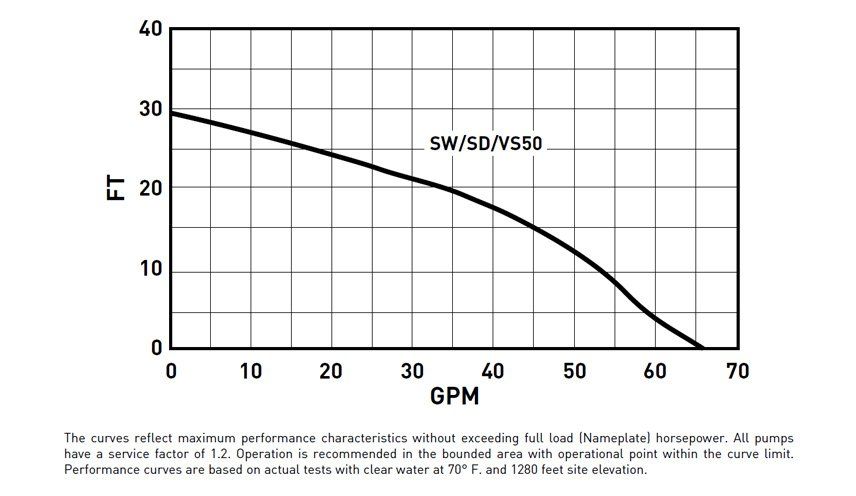

  • Performance Curves

Quick Data Select
