Hydromatic

D-A1 Series

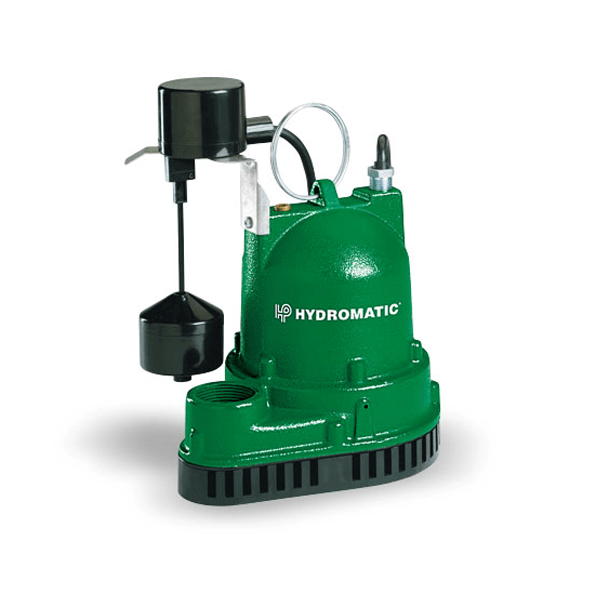

Pentair Hydromatic D-A1 Series Sump Pump: Automatic operation features Hydromatic's exclusive pressure diaphragm switch (D-A1). All switches feature a piggyback plug-in arrangement. Carbon-ceramic mechanical shaft seal.

Please contact us for a quote



  • Description

    3/10 HP Cast Iron Sump Pumps

    The most popular series of Hydromatic submersible sump pumps.

    Key Features

    • Uses Carbon-Ceramic mechanical Shaft Seal
    • Single-row Ball-bearing Construction
    • Oil-Filled Motor with Automatic Reset Thermal Overload Protection
    • Piggyback Electrical Plug for Easy Maintenance and Replacement
    • HORSEPOWER:  3/10 HP
    • MAXIMUM HEAD:  25′
    • MAXIMUM CAPACITY:  48 GPM
    • FLOW at 10′ LIFT:  38 GPM
    • SWITCH TYPE:  Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
    • MIMINUM SUMP DIAMETER:  12″ for Diaphragm or Vertical Switch Models; 18″ for Tethered Switch Model
    • DISCHARGE PIPE SIZE:  1-1⁄2” NPT
    • MAXIMUM SOLIDS HANDLING SIZE:  1/2″
    • AMP DRAW (full load):  8 Amps
    • CORD LENGTH:  10′ (20′ Optional)
    • VOLTAGE:  115v AC, 60 Hz
    • MAXIMUM WATER TEMPERATURE:  120 degrees F (49 degrees C)
    • MOTOR:  3/10 HP / Shaded Pole / 115v / 8 full-load amps
  • Additional information

    Manufacturer Hydromatic
    Series D-A1
    Models
  • Technical Data

  • Parts

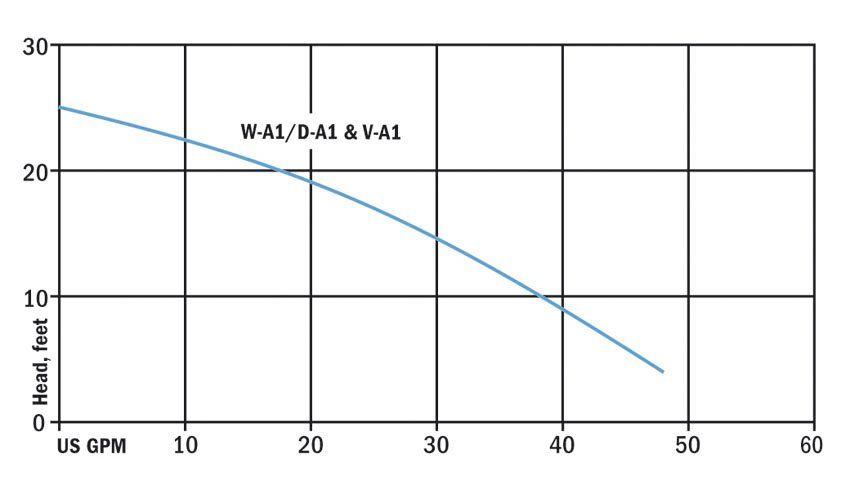

  • Performance Curves
