Little Giant

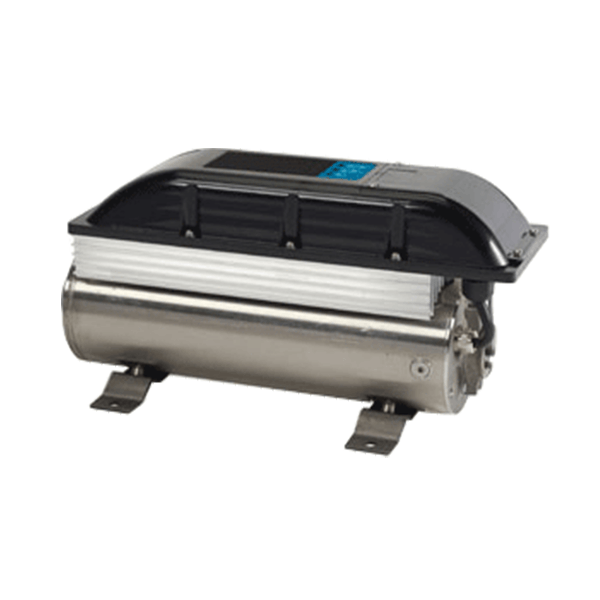

CP Series Constant Pressure Pump

Little Giant CP Series Constant Pressure Pump: The Inline CP Constant Pressure System provides constant pressure for both private wells and municipal water systems.

Please contact us for a quote



  • Description

    The Inline CP Constant Pressure System provides constant pressure for both private wells and municipal water systems.

    Features:

    • A complete and packaged system (Pump, motor, drive and pressure sensor in one box)
    • Small and compact design – Fits into small areas, even between floor joists
    • Stainless steel construction – Made for years of operation
    • Simple and easy installation – Step-by-step illustrated instructions
    • Quiet and cool operation – Integrated motor design allows water to flow around it
    • NEMA 4 (IP56) electronics enclosure
    • Multiple mounting configurations – Install units where you need them: horizontal, vertical and even upside down
    • Product power rating: 1.2 hp, 0.9 kW
    • Shipping weight: 50 lbs, 22.7 kg
    • Built in system protections guard the Inline unit from many common failure modes including: surge protection, voltage underload, locked pump, open circuit, short circuit and overheated controller.

    Applications:

    • Boosted and constant water pressure from water storage/cistern systems
    • Homes – both in private and municipal applications
    • General pressure boosting
    • Sprinkler systems
    • Farming and commercial wash down systems
  • Additional information

    Pump Type Constant Pressure Pumps
    Series CP
    Manufacturer Little Giant
    Models
    • Technical Data
    • CP
    • Performance
    • CP
    • Parts
    • CP
  • Technical Data

  • Parts

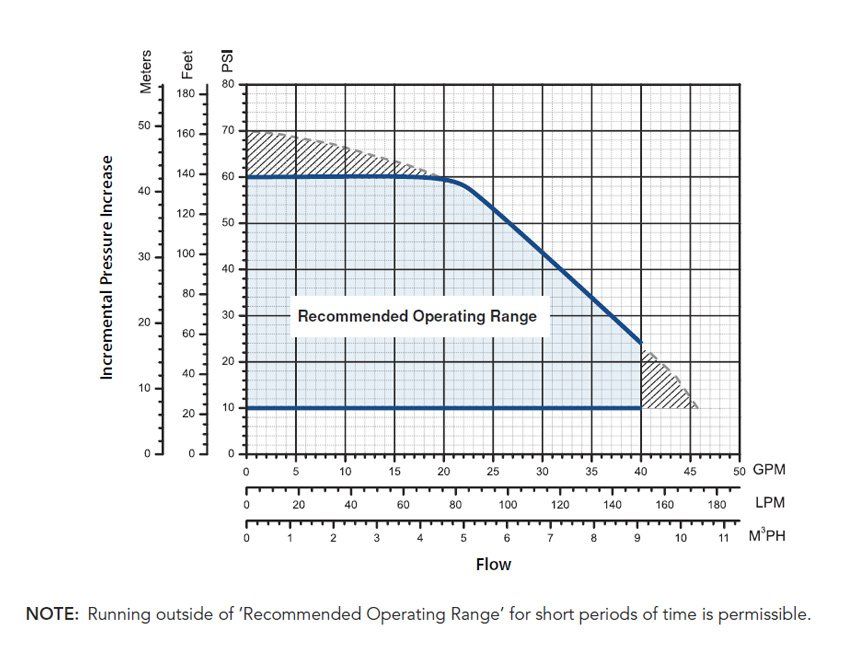

  • Performance Curves

Quick Data Select
