Grundfos CMBE Series Compact Booster Pump

Please contact us for a quote

  • Description

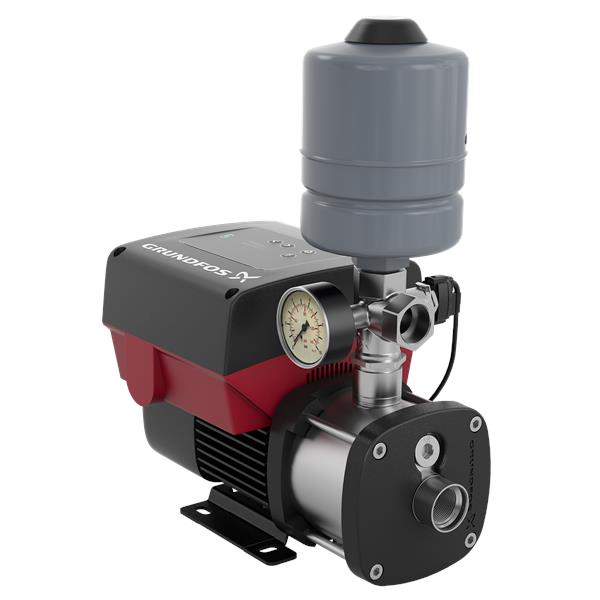

    Grundfos CMBE Series Compact Booster Pump

    The CMBE Booster is designed for residential and commercial water supply, pressure boosting, irrigation and dewatering applications. The CMBE series is available in both 1×110-120V and 1×200-240V variants and uses energy efficient, permanent magnet motor technology, which provides unmatched reliability, quiet operation, and energy savings. Thanks to the integrated speed controller, the CMBE keeps a constant pressure in the pipe system. A pressure sensor monitoring discharge pressure will signal to the speed controller to change the motor speed to adapt the performance to the new situation.


    • Residential and commercial water supply
    • Pressure boosting
    • Irrigation
    • Dewatering

    Features and Benefits

    • All-in-one solution including pump, motor, tank, pressure and flow sensor, controller and check valve
    • Constant pressure and commercial grade quality in one compact system
    • Reliable and easy to install
    • Highly efficient ECM motor reduces operating costs
    • Variable Frequency Drive (VFD) with built in PI controller
    • Grundfos manufactures all CMBE component
    • Optimized and simple to use controller
    • Communication capable with CIM cards
    • Simple selection guide to size correct pump
    • Low noise (55dB or less in typical use)
    • Drinking water NSF 61/UL 372 approved
  • Additional information

    Product Category Pressure Boosting Pumps, Constant Pressure Pumps
    Series CMBE
    Manufacturer Grundfos
    Models CMBE 1-75, CMBE 10-54, CMBE 3-62, CMBE 5-31, CMBE 5-62
    Part Number CMBE 1-75, CMBE 10-54, CMBE 3-62, CMBE 5-31, CMBE 5-62
    Voltage 200-240, 115
  • Technical Data

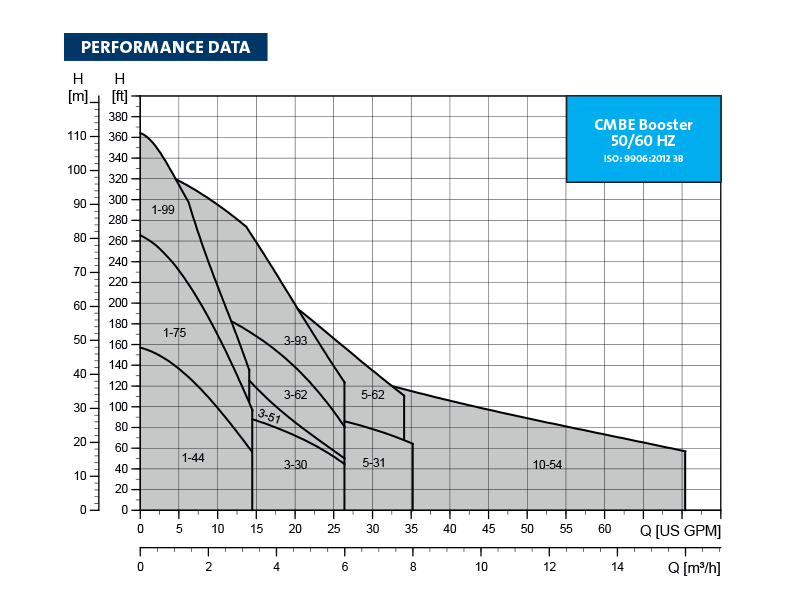

  • Performance Data
