Little Giant

3-ABS Series

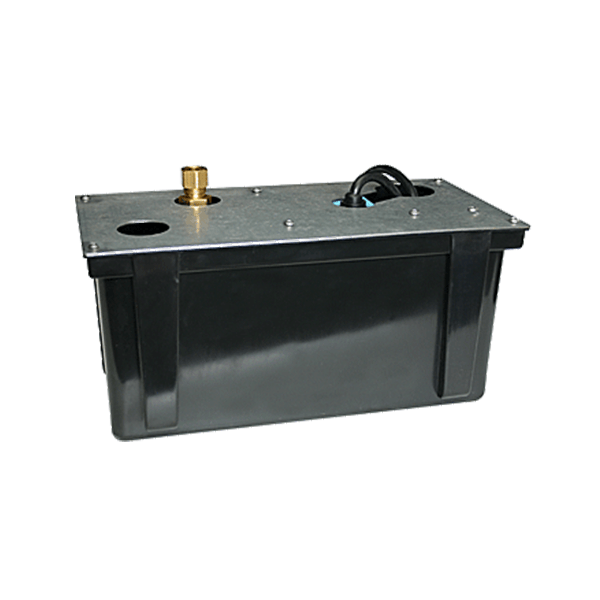

Designed for in-pan placement, the 3-ABS shallow pan pumps offer next generation technology for air conditioner condensate removal. Totally submersible pump with built-in, advanced mechanical switch that automatically triggers operation when condensate in the pan or reservoir reaches a preset level.

Please contact us for a quote



  • Description

    Designed for in-pan placement, the 3-ABS shallow pan pumps offer next generation technology for air conditioner condensate removal. Totally submersible pump with built-in, advanced mechanical switch that automatically triggers operation when condensate in the pan or reservoir reaches a preset level. Automatic shutoff occurs when the condensate level drops.

    Low weight, compact size, high lift and quiet operation make the Little Giant line of ABS pumps perfect for in-pan condensate and other wastewater removal.

    Features:

    • 1/12 HP oil filled motor
    • Epoxy coated cast aluminum housing and motor cover
    • Galvanized steel tank cover
    • ABS tank
    • 1 gallon tank capacity
    • Nylon volute
    • Stainless steel shaft
    • 1/2″ MNPT discharge with brass check valve for 1/2″ OD, rigid plastic or copper
    • Viton shaft seal
    • Advanced non-mercury mechanical switch
    • Thermal overload protection
  • Additional information

    Pump Type Condensate Pumps
    Series 3-ABS
    Manufacturer Little Giant
    Models
  • Technical Data

  • Parts

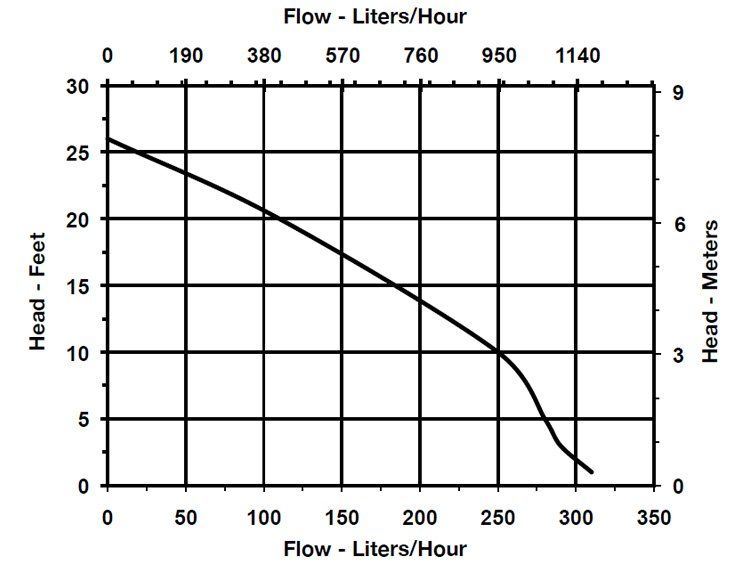

  • Performance Curves

Quick Data Select
