Little Giant

EC-400 Series

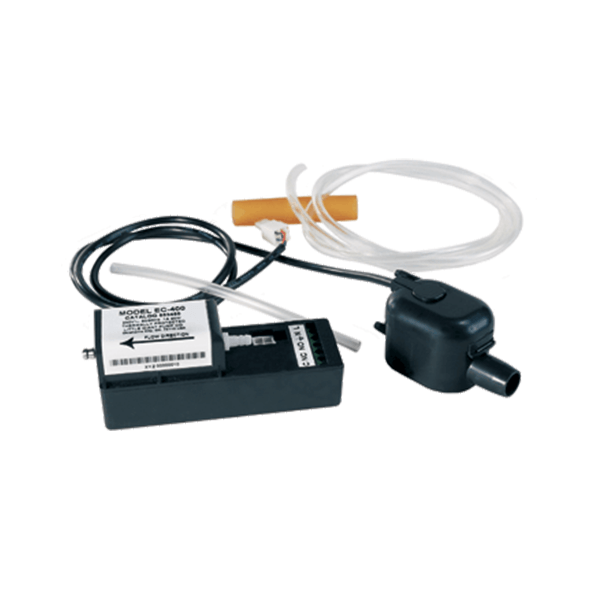

Little Giant EC-400 Series Condensate Pump: The EC-400 automatically removes condensate from wall mount ductless mini-split air conditioners when gravity drainage is not possible. The compact design allows components to be placed in most air handlers or the pump can be placed up to 3' above or adjacent to the air handler in the ceiling void or inside the line-set channel.

Please contact us for a quote



  • Description

    The EC-400 automatically removes condensate from wall mount ductless mini-split air conditioners when gravity drainage is not possible. The compact design allows components to be placed in most air handlers or the pump can be placed up to 3′ above or adjacent to the air handler in the ceiling void or inside the line-set channel. A three position switch (on, off and overflow detection) is activated by a float located in the collection reservoir.

    Features:

    • For intermittent operation, maximum 50% duty cycle
    • Condensate produced in application must be no more than half the pump’s flow rate for any given head
    • Use with most mini-split air conditioning units up to 25,000 BTU/hr
    • Self-priming pump can be placed up to 3′ above reservoir
    • Includes safety switch, suction tubing, vent tubing and drain tubing, and tubing adapter
  • Additional information

    Pump Type Condensate Pumps
    Series EC-400
    Manufacturer Little Giant
    Models
  • Technical Data

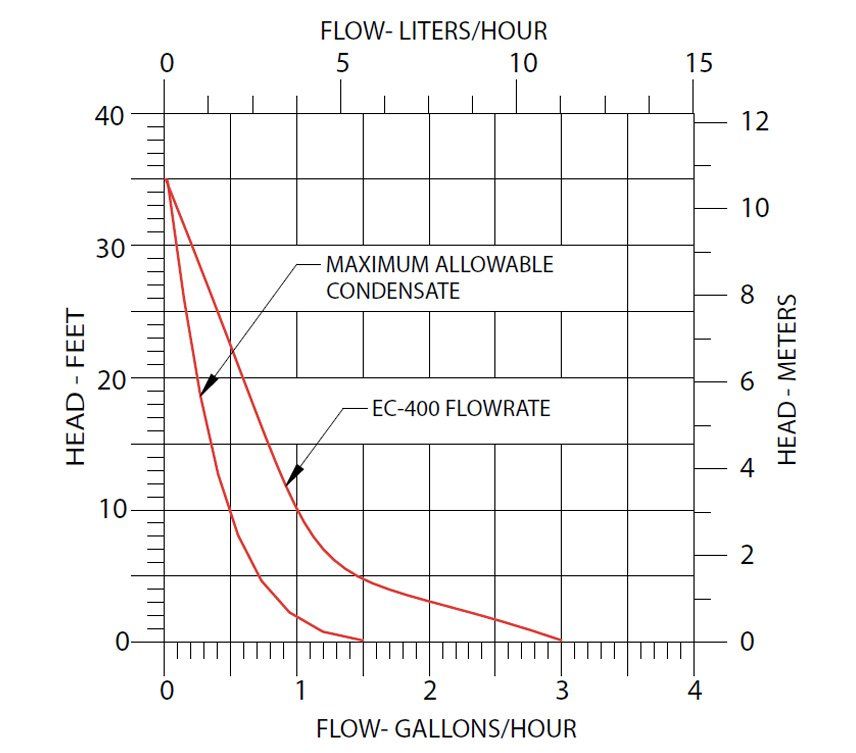

  • Performance Curves

Quick Data Select
