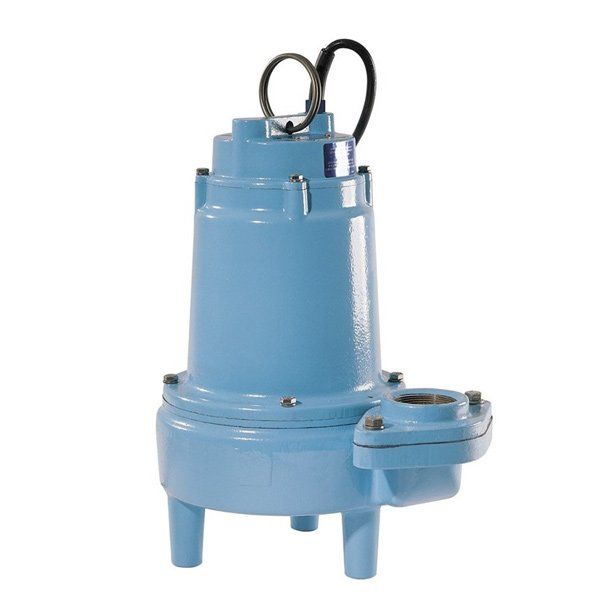

Little Giant

14S Series

The 14S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

Please contact us for a quote



  • Description

    Little Giant 14S Series

    The 14S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

    For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.

    Features:

    • 1/2HP permanent split capacitor motor with overload protection
    • Designed for continuous duty
    • 2″ FNPT (51 mm) and 3″ FNPT (76.2 mm) discharge models
    • Two vane non-clog epoxy coated cast iron impeller
    • Handles solids up to 2″ (51 mm) diameter
    • 140 °F (60 °C) liquid temperature rating
    • cCSAus listed
    14S Series - Little Giant - Sewage Pump
    VoltsHzAmpsWattsPerformance (GPM @ Height in Feet)Shut-Off (ft)PSI
    FLAStart10 ft20 ft
    1156011.6211100100352510.8
    208-240604.67.81100100352510.8
    Item No.ModelHPVoltsDischargeSwitch Type/OperationCordWeight
    51432014S-CIM1/21152"Manual20 ft85 lbs
    6.1 m38.6 Kg
    51442014S-CIM1/21153"Manual20 ft85 lbs
    6.1 m38.6 Kg
    51432114S-CIM1/2208 -2402"Manual20 ft85 lbs
    6.1 m38.6 Kg
    1494072614S-CIM1/2208 -2403"Manual20 ft85 lbs
    6.1 m38.6 Kg
  • Additional information

    Product Category Sewage Pumps
    Series 14S
    Manufacturer Little Giant
    Models
    Horsepower 1/2
  • Technical Data

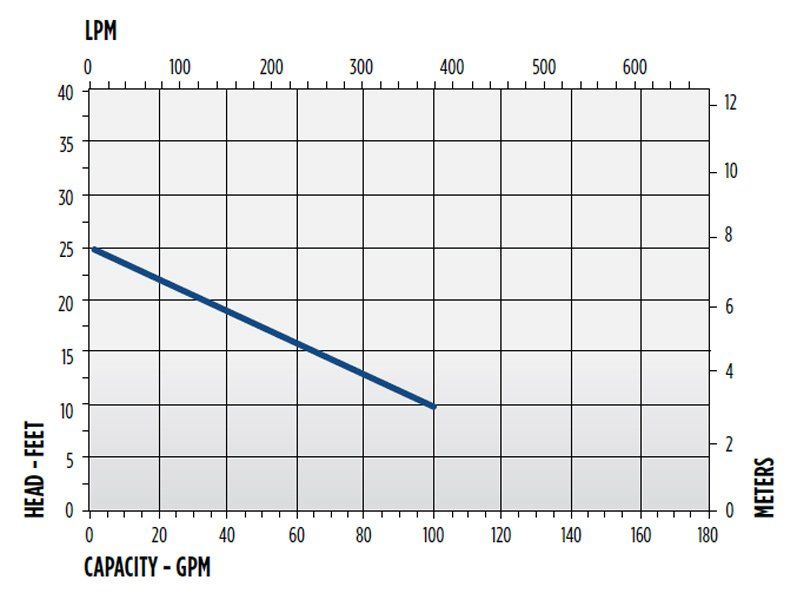

  • Performance Data
