Little Giant

20S Series

The 20S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

Please contact us for a quote



  • Description

    Little Giant 20S Series

    The 20S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

    For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands.
    Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.

    Features:

    • 2HP permanent split capacitor motor with overload protection
    • Designed for continuous duty
    • Epoxy coated cast iron housing, cover and volute
    • 3″ FNPT (761 mm) discharge
    • Carbon/ceramic shaft seal
    • Brass impeller
    • 140 °F (60 °C) liquid temperature rating
    • Upper and lower ball bearings
    • Handles solids up to 2″ (51 mm) diameter
    • cCSAus listed
    20S Series - Little Giant - Sewage Pump
    VoltsHzAmpsWattsPerformance (GPM @ Height in Feet)Shut-Off (ft)PSI
    FLAStart10 ft20 ft30 ft40 ft
    200-2086014.53227692051681401207733.3
    208-23060183141182051681401207733.3
    230*6012.63526862051681401207733.3
    460*606.117.527712051681401207733.3
    *3-phase
    Item No.ModelHPVoltsDischargeSwitch Type/OperationCordWeight
    52012520S-CIM2200-2083**Manual20 ft96 lbs
    6.1 m43.54 Kg
    52010020S-CIM2208-2301Manual20 ft96 lbs
    6.1 m43.54 Kg
    520150*20S-CIM22303**Manual20 ft96 lbs
    6.1 m43.54 Kg
    520175*20S-CIM24603**Manual20 ft96 lbs
    6.1 m43.54 Kg
    **Three-phase pumps must have a three-phase panel for automatic operations
  • Additional information

    Pump Type Sewage Pumps
    Manufacturer Little Giant
    Series 20S
    Models
  • Technical Data

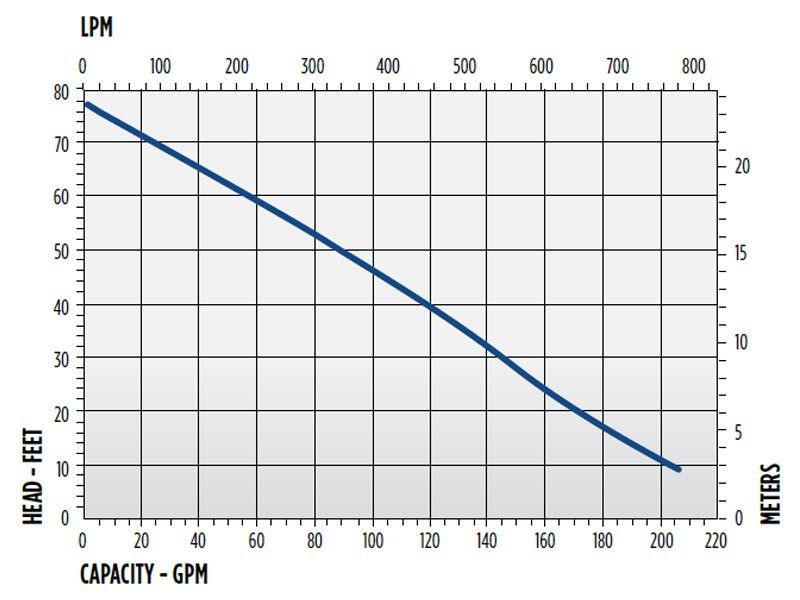

  • Performance Curves
