Little Giant

18S Series

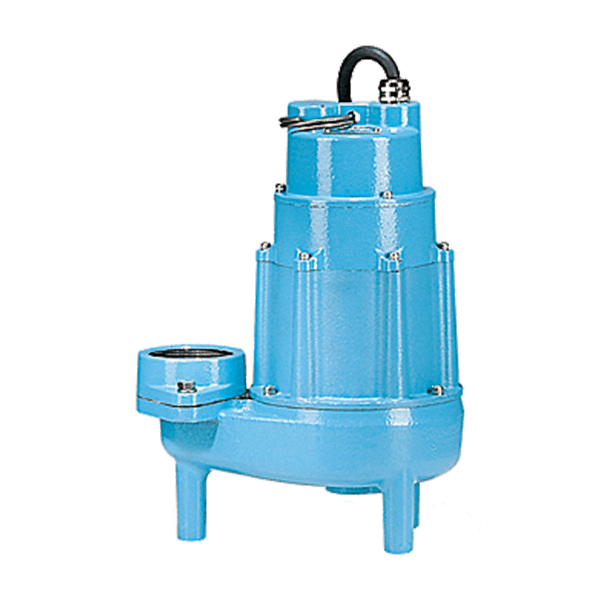

The 18S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

Please contact us for a quote



  • Description

    Little Giant 18S Series

    The 18S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

    For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.

    Features:>

    • 1-1/2HP permanent split capacitor motor with overload protection
    • Designed for continuous duty
    • Capacitor and power cord connections are isolated from oil-filled motor housing for ease of field maintenance
    • Epoxy coated cast iron housing, cover and volute
    • 3″ FNPT (761 mm) discharge
    • Carbon/ceramic shaft seal
    • Vortex brass impeller
    • Upper and lower ball bearings
    • 140 °F (60 °C) liquid temperature rating
    • Handles solids up to 2″ (51 mm) diameter
    • cCSAus listed
    18S Series - Little Giant - Sewage Pump

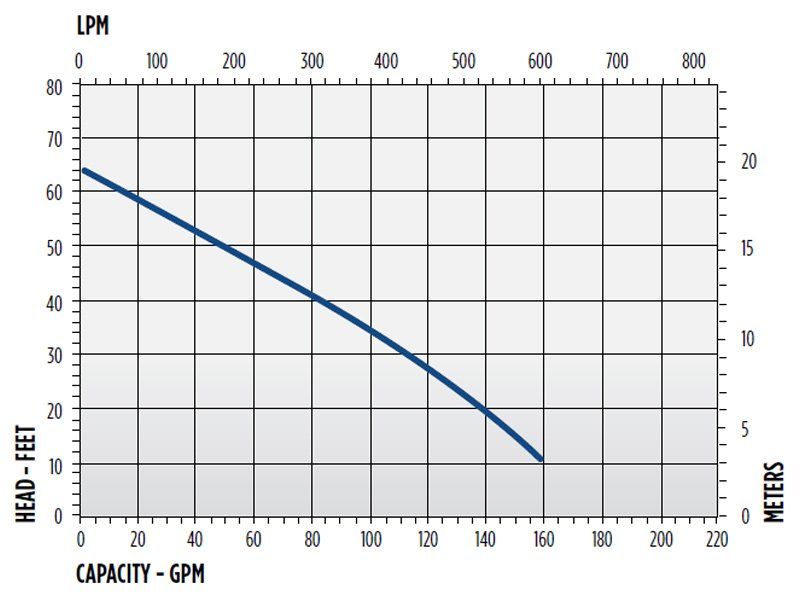

    VoltsHzAmpsWattsPerformance (GPM @ Height in Feet)Shut-Off (ft)PSI
    FLAStart10 ft20 ft30 ft40 ft50 ft
    200-208601631322916013711184506427.7
    200-208*6013.532164416013711184506427.7
    2306015.531351216013711184506427.7
    230*6011.535151216013711184506427.7
    460605.317.5147416013711184506427.7
    *3-phase
    Item No.ModelHPVoltsDischargeSwitch Type/OperationCordWeight
    52030018S-CIM1-1/22081Manual20 ft94 lbs
    6.1 m42.64 Kg
    52030218S-CIM1-1/2200-2083**Manual20 ft94 lbs
    6.1 m42.64 Kg
    52030118S-CIM1-1/22301Manual20 ft94 lbs
    6.1 m42.64 Kg
    520303*18S-CIM1-1/22303**Manual20 ft94 lbs
    6.1 m42.64 Kg
    52030418S-CIM1-1/24603**Manual20 ft94 lbs
    6.1 m42.64 Kg
    **Three-phase pumps must have a three-phase control panel for automatic or manual operation
