Goulds Pumps

NM3196 i-Frame Series

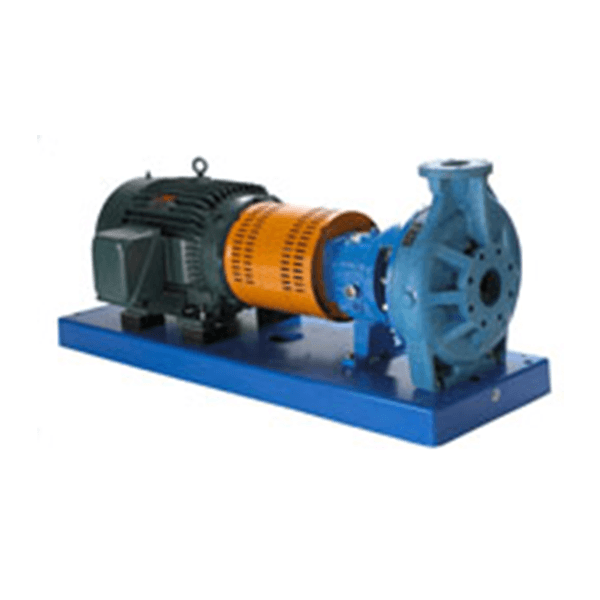

Goulds Pumps NM3196 i-Frame Series Chemical Pump: Designed specifically to provide superior performance for the corrosive services of the Chemical Process Industries.

Please contact us for a quote



  • Description

    Specifications

    • Capacities to 1400 GPM (318 m3 /h)
    • Heads to 500 feet (152 m)
    • Temperatures to 200° F (93° C)
    • Pressures to 220 PSIG (1517 kPa)

    Design Features

    • Extended Pump Life
      • Fiberglass Reinforced Vinylester Construction
      • Random fiber orientation provides strength equal to metal
      • Same flange loading capability as metallic Model 3196 i-FRAME
      • Superior corrosion resistance
      • i-FRAME™ power ends
      • Fully open impeller
    • Ease of Maintenance
      • Back pull-out
      • ANSI standard dimensions
      • External impeller adjustment
      • Parts interchangeable with Model 3196 i-FRAME
      • Easy retrofit
    • Optimum Hydraulic Performance
      • True volute casing
      • Fully open impeller
    • Safety
      • ANSI B15.1 coupling guard
      • No through-bolt fastening
  • Additional information

    Pump Type Chemical Pumps
    Series 3196, i-FRAME
    Manufacturer Goulds Pumps
    Models
  • Technical Data

  • Parts

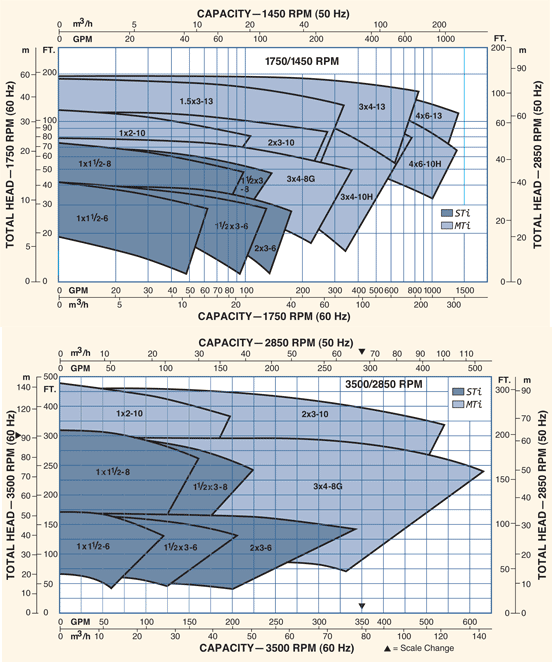

  • Performance Curves
