MARS Azure 1/5 – 1/2 HP ECM for X13

Please contact us for a quote



  • Description

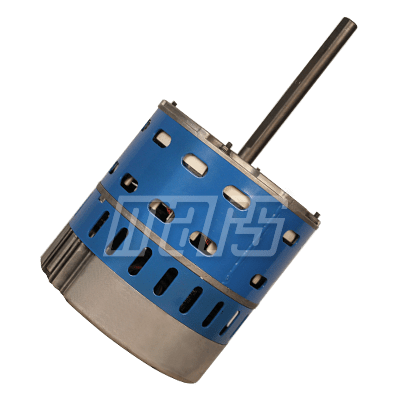

    MARS Azure 1/5 – 1/2 HP ECM for X13

    The latest generation of Azure® ECM features integrated Bluetooth control for use with the Azure® Blower Motor smartphone app. While not required for the installation of these motors, the app allows the installer to take full advantage of the ECM technology. While competitive aftermarket ECMs provide only 5 speed taps for setting airflow, the Bluetooth Azure® motors provide more than 50 speed selections and the ability to autosize to the ductwork all with a keystroke or two in the app.

    One Touch Autosizing

    One touch of a button automatically assigns correct torque for the ductwork; additional programming harnesses are not required.

    Individual Speed Tap Adjustments

    Dial in the temperature rise with 1% torque increments. Tune out annoying high frequency harmonics. Optimize CFM.

    Real Time Data

    Monitor motor volts, amps, watts, and RPM’s.

    Drop-in Installation

    Simple to wire; connections are the same as the motor being replaced.

    Features:

    • 4 speeds plus 625 RPM constant fan mode
    • High efficiency 85%
    • Multi-horsepower, dual voltage
    • Belly band mount

    Specifications:

    Motor Type ECM Enclosure OAO
    H.P. (Max.) 1/2 Voltage 120/240
    Multi-Rated H.P. 1/5 – 1/2 Speeds 5
    Hz 50/60 Rotation REV+FWD
    RPM Range Constant Torque NEMA Frame Size 48
    Phase Single Standards CUL
    Notes Replaces X13 Mount Belly Band
    Bearing Ball Shaft Length Inches 4.94
    Shaft Dia. Inches 1/2 Thermal Protection REDUNDANT Electronic Control CIRCUITS
    Ambient Deg C 55 Ins. Class Class B
    Capacitor Included No Replaces X13
  • Additional information

    Manufacturer MARS
    Product Category ECM, Electric Motors
    Models 10858
    Part Number 10858
    RPM 1075
    Voltage 115/230
