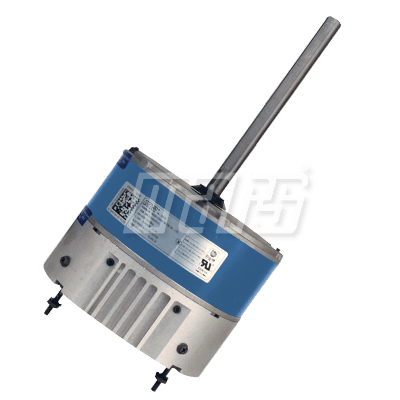

MARS Azure 1/3 HP Horizontal Condenser ECM

Please contact us for a quote



  • Description

    MARS Azure 1/3 HP Horizontal Condenser ECM

    Azure® is an electronically controlled motor (ECM) that replaces a multitude of applications. These motors cover ratings from 1/8 HP to 1/3 HP at 208-230V 825/1075 RPM and 1/3 HP to 1/2 HP 208-230V 825/1075 RPM and CW or CCW.

    These motors are simple to install. The Azure® condenser fan motors connect the same as a standard PSC condenser fan motor, BUT WITHOUT the capacitor. Just plug the motor into a 115V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor:

    1. 1075 RPM CW (LE) – Factory Default
    2. 1075 RPM CCW (LE)
    3. 825 RPM CW (LE)
    4. 825 RPM CCW (LE)

    Unlike other ECM motors, an outboard surge protector is included with the Azure® wiring harness. This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge.

    Specifications:

    • Multi horsepower, self-adjusting
    • 825/1075 RPM, single speed
    • Reversible rotation
    • High efficiency ECM
    • No capacitor required
    • Water slinger on shaft
    • UL Recognized

    Motor Type ECM Enclosure CAO
    H.P. (Max.) 1/8 – 1/3 Voltage 208-230
    Multi-Rated H.P. 1/8 – 1/3 Speeds 1
    Hz 50/60 Rotation REV
    RPM Range 1075 NEMA Frame Size 48
    Phase Single Standards CUL
    Mount Belly Band Bearing Ball
    Shaft Length Inches 5 Shaft Dia. Inches 1/2
    Thermal Protection Electronical Protection Ambient Deg C -20 to +55C
    Ins. Class Class B Capacitor Included No
  • Additional information

    Manufacturer MARS
    Product Category ECM, Electric Motors
    Models 10875
    Part Number 10875
    RPM 1075
    Voltage 208-230
