Description

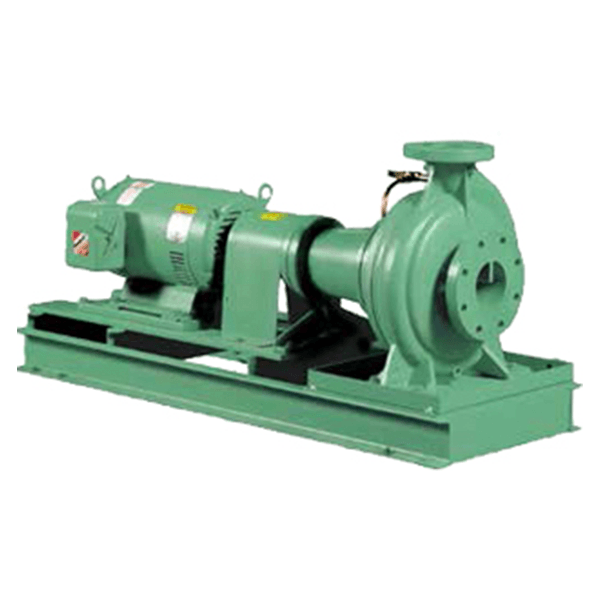

Taco FI Series Pumps provide quiet, dependable power plus hydraulic performance and dimensional characteristics that meet the very latest standards.

The improved bearing frame design features sealed-for-life bearings that meet all industry requirements for a minimum L 10 life of 60,000 hours, and optional, re-grease able bearings are also available.

An easy-to-replace, slip-on shaft sleeve facilitates seal maintenance in the field and lowers maintenance costs. Taco’s exclusive dry shaft design protects the pump shaft by eliminating contact with the circulating fluid, so corrosion-resistant shaft materials are generally not required.

FI Pumps also feature flush seal line taps, allowing the installation of a filter to protect the seal from non-condensable particles present in open systems. In addition, pressure tappings on suction and discharge connections are provided as a standard feature.

Taco FI Pumps are ideally suited for a variety of applications, including heating, air conditioning, pressure boosting, cooling water transfer, and water supply.

Additional information

Technical Data

• • Taco FI Series 1200 RPM Technical Data
  • Taco FI Series 1800 RPM Technical Data
  • Taco FI Series 3600 RPM Technical Data

Parts

• FI 1206, 1506, 2506
• FI 1207, 1507
• FI 1509, 3009, 5009
• FI 1509,2509,3009,5009
• FI 1511, 2511
• FI 2007
• FI 2009, 2009C
• FI 2507, 3007, 4007
• FI 2508
• FI 2509, 2509C
• FI 2510, 2510C
• FI 2513, 3013
• FI 3011, 5011, 6011
• FI 4009
• FI 4011, 4011C
• FI 4013
• FI 4075, 5007
• FI 5013, 6013
• FI 5095, 6009B
• FI 8013

Performance Data

Legacy
