Description

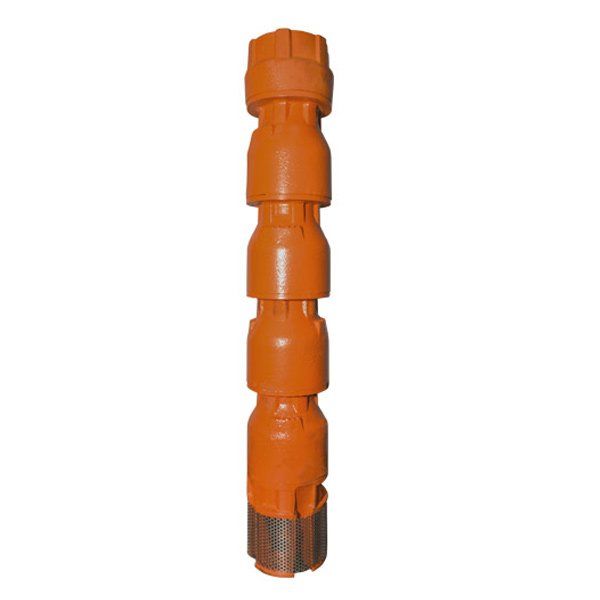

The 5TMH Series replaces the 6T series

The 5TMH pump series features abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions, and delivers industry-leading efficiencies and head per stage. The 5TMH series consists of five new hydraulic designs for well casings with an ID smaller than 6″.

Key Features

• Factory pre-set upthrust screw is retained by a stainless steel lockout, providing maximum upthrust protection
• Threaded discharge with large wrench flats and sized for the pump’s flow range
• Low friction discharge bearing, no water swell, long life. Specific for water-immersed applications, clean or dirty
• Precision ground and polished shaft for reduced running friction and increased service life
• Smooth and efficient impeller provides performance and long life
• Heavy-walled bowls incorporate precision hydraulic design for maximum efficiency and performance.
• Lead guard protects the motor leads across the full length of the pump
• Uniquely designed isolator bearings channel abrasives away from the stainless steel shaft bearing journal
• Suction bracket machined for both 4” and 6” motor registers. Designed to effectively divert debris away from the spline engagement area, maximizing durability
• Form fitted suction screen provides corrosion resistance, and prevents particulates larger than .19” (4.8 mm) from entering the pump
• Fully machined motor coupling for positive fit; highly corrosion resistant
• Sand boot protects coupling and motor splines from abrasive wear

Additional information

Technical Data

• • 5TMH Series Technical Data

Parts

• 5TMH-75 Parts
• 5TMH-110 Parts
• 5TMH-170 Parts
• 5TMH-250 Parts
• 5TMH-375 Parts
• 5TMH-425 Parts

Performance Data
