Berkeley

8T Series

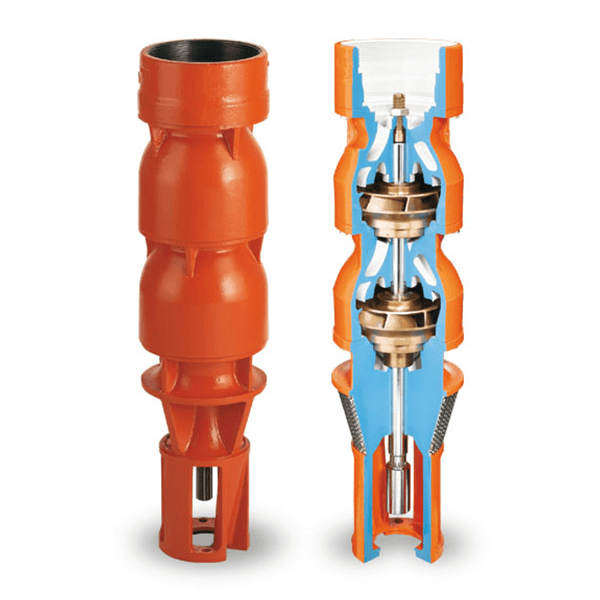

Pentair Berkeley 8T Series Turbine Pumps: These 8T Series Pumps are proven performers for a wide range of municipal and agricultural applications. Pumps features Epoxy Coated Bowls, Bronze Impellers and Bearings to provide efficiencies in the 80% plus range.

Please contact us for a quote



  • Description

    These 8T Series Pumps are proven performers for a wide range of municipal and agricultural applications. Pumps features Epoxy Coated Bowls, Bronze Impellers and Bearings to provide efficiencies in the 80% plus range. Four 8T series models assure the right pump for your particular installation.

    Key Features

    • Heavy-Duty Discharge Adapter made of Class 30 Cast Iron includes a top bronze thrust bearing. Threaded discharge is sized for the pump’s flow range. Factory-set thrust screw, retained by a stainless steel lockout, provides maximum upthrust protection
    • Heavy-Walled Class 30 Cast Iron Bowls incorporate precise hydraulic design for maximum efficiency and performance. Positive “Bowl Lock” feature on 8T-950 eliminates risk of bowl loosening
    • Bronze Impellers are designed and machined to optimize efficiency and performance
    • Bronze Bearings maintain positive shaft alignment, minimizing sand penetration and wear
    • Wear Ring (on 8T-950) enables pump to be re-built to maintain original factory performance
    • Non-Corrosive Sand Cap protects bronze suction bracket bearing and stainless steel bearing journal
    • 416 Stainless Steel Pump Shaft is precision-ground & polished for reduced running friction & increased service life
    • Heavy-Duty Stainless Steel Suction Strainer is non-collapsible and corrosion-resistant
    • Heavy-Duty Cast Iron Suction Bracket assures perfect pump-to-motor alignment with NEMA standard motors
    • Low Profile, Full-Length Stainless Steel Cable Guard (not shown)protects motor leads
  • Additional information

    Pump Type Turbine Pumps
    Series 8T
    Manufacturer Berkeley
    Models
    ,
    ,
    ,
    ,
