Description

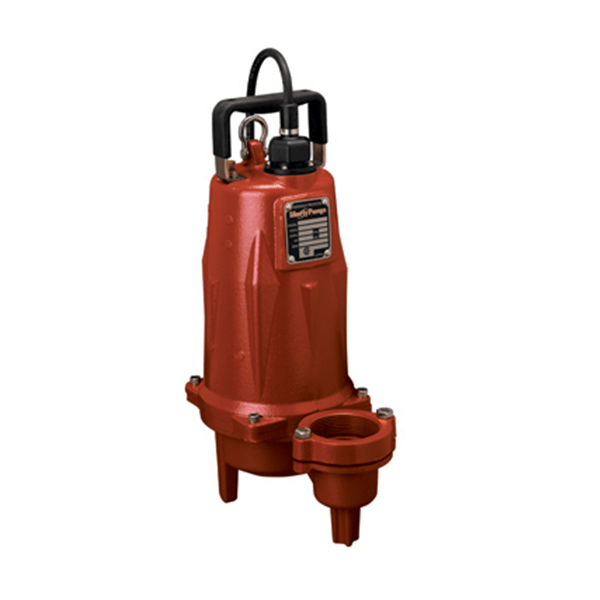

The LEH200 by Liberty is a high head 2″ solids-handling sewage pump. The LEH200 features Liberty’s unique one-piece cast iron body and quick-disconnect cords in 25′ standard length. Available in 2″ or 3″ flanged discharge and a variety of voltages, the LEH200 has a maximum head of 83 feet.

Features:

• Rugged 2 vane, closed cast iron impellers
• Cast iron housing and volute with all stainless fasteners
• 416 stainless steel rotor shaft
• Oil-filled, hermetically sealed motors
• Built-in thermal protection on single phase models
• 2″ or 3″ flanged discharge
• Permanently lubricated upper and lower ball bearings
• Dual shaft seals
• Quick-disconnect 25′ standard power cord allows replacement of cord in seconds without breaking seals to motor

Additional information

Technical Data

• • LEH200 Series Technical Data

Parts

• LEH202M2 (B54)
• LEH202M2 (B67)
• LEH202M2-2 (B67)
• LEH202M2-3E (B84)
• LEH202M3 (B54)
• LEH202M3 (B67)
• LEH202M3-3E (B84)
• LEH203M2 (B54)
• LEH203M2 (B67)
• LEH203M2-2 (B67)
• LEH203M2-3 (B67)
• LEH203M2-3E (B84)
• LEH203M2-5 (B67)
• LEH203M3 (B54)
• LEH203M3 (B67)
• LEH203M3-2 (B67)
• LEH203M3-3 (B67)
• LEH203M3-3E (B84)
• LEH203M3-5 (B67)
• LEH204M2 (B54)
• LEH204M2 (B67)
• LEH204M2-2 (B67)
• LEH204M2-3 (B67)
• LEH204M2-3E (B84)
• LEH204M2-5 (B67)
• LEH204M3 (B54)
• LEH204M3 (B67)
• LEH204M3-2 (B67)
• LEH204M3-3 (B67)
• LEH204M3-3E (B84)
• LEH204M3-5 (B67)
• LEH205M2 (B54)
• LEH205M2 (B67)
• LEH205M2-2 (B67)
• LEH205M2-3 (B67)
• LEH205M2-5 (B67)
• LEH205M3 (B54)
• LEH205M3 (B67)
• LEH205M3-2 (B67)
• LEH205M3-3 (B67)
• LEH205M3-5 (B67)

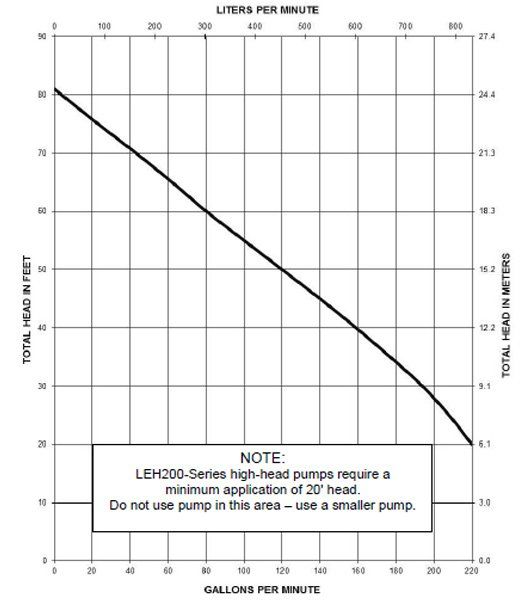

Performance Data
