Barnes
Barnes Effluent Pumps

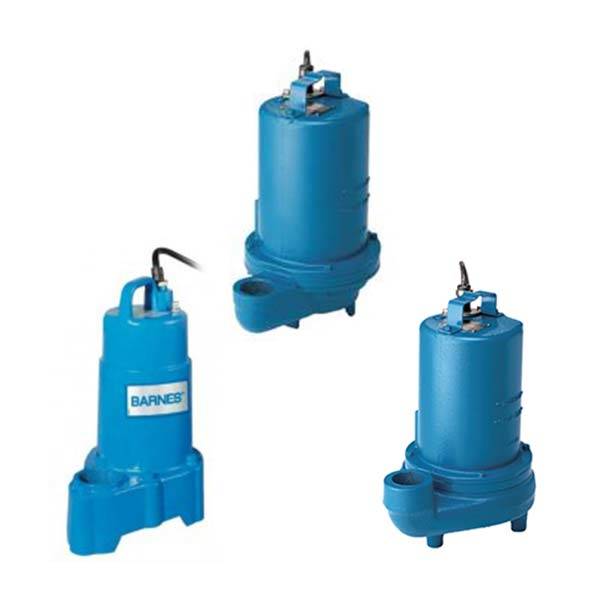

Barnes EH-L, EH-DS Series, STEP-SS, STEP-DS Series, EP52X, EP72X Series Effluent Pumps. Impeller type: single vane (enclosed), cast iron motor housing and volute, 416 SS shaft to handle aggressive sewage
-
Description
Barnes EH-L, EH-DS, STEP-SS, STEP-DS, EP52X and EP72X Series
Features
- Cast iron motor housing and volute
- Impeller type: single vane, enclosed
- 416 SS shaft to handle aggressive sewage
- Upper and lower ball bearing for quieter run and longer life
- Permanent split capacitor (PSC) motor for more efficient operation
- 2″ discharge with high temperature overload on the motor for single phase operation
- Quick connect custom molded cord for sealing and strain relief
Optional equipment
- Additional seal faces
- Impeller trim
- Cord lengths and normally closed temperature sensor and cord for 3 phase operation (requires relay in panel)
-
Additional information
Product Category Effluent Pumps Series EH-DS, EH-L, EP52X, EP72X, STEP-DS, STEP-SS Manufacturer Barnes Models , , , , , -
Technical Data
-
Parts
-

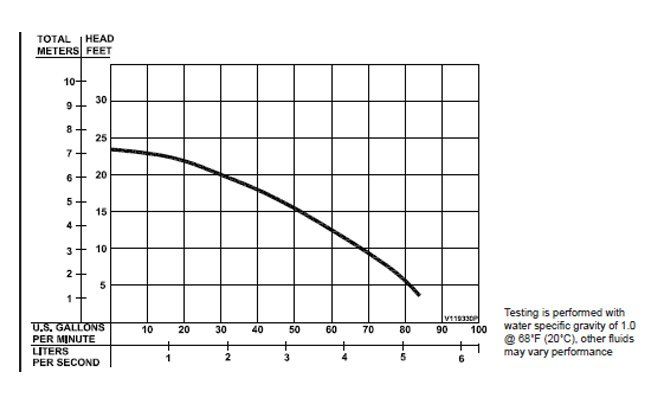

Performance Data
