Berkeley

7T Series

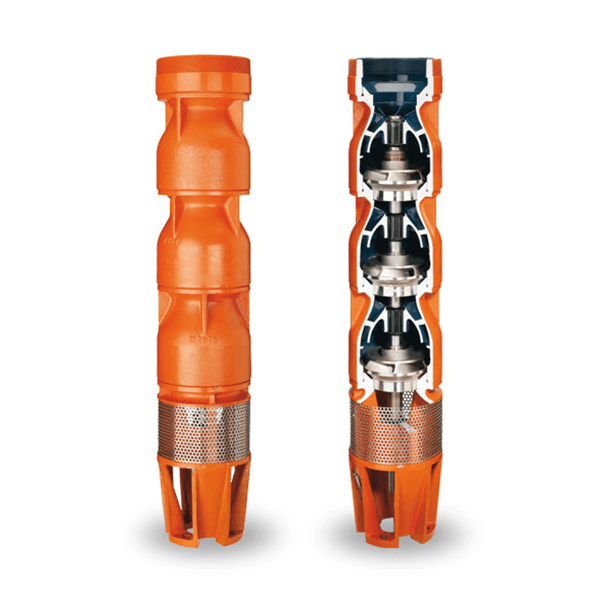

Pentair Berkeley 7T Series Turbine Pumps: The 7T Series pumps are built for maximum abrasion resistance: Proven performers for a wide range of applications from clean municipal wells to the harshest agricultural wells.

Please contact us for a quote



  • Description

    The 7T Series is no longer in production and has been replaced by the 6TMH Series

    The 7T Series pumps are built for maximum abrasion resistance: Proven performers for a wide range of applications from clean municipal wells to the harshest agricultural wells. Abrasion resistant features include: Investment Cast 304 Stainless Steel Impellers and Neoprene Rubber Bearings.

    Key Features

    • Heavy-Duty Discharge Adapter is Class 30 cast iron, threaded with large wrench flats sized for the pump’s flow range
    • Factory Pre-set Upthrust Washers balance rotor loading in all operating conditions. 7T-175 and 7T-260 models offer upthrust screw with a stainless steel locknut for maximum upthrust protection
    • Heavy-Walled Class 30 Cast Iron Bowls incorporate precise hydraulic design for maximum efficiency and performance
    • Stainless Steel Impellers are designed, machined and balanced to optimize efficiency and performance
    • Unique Neoprene Bearing Design channels abrasives away from stainless steel bearing journal
    • 416 Stainless Steel Pump Shaft is precision ground & polished for reduced running friction & increased service life
    • Heavy-Duty Stainless Steel Suction Strainer is non-collapsible and corrosion-resistant
    • Heavy-Duty Cast Iron Suction Bracket assures perfect pump-to-motor alignment with NEMA standard motors
    • Low Profile, Full-Length Stainless Steel Cable Guard (not shown)protects motor leads
  • Additional information

    Pump Type Turbine Pumps
    Series 7T
    Manufacturer Berkeley
