Franklin Electric

FAC Series

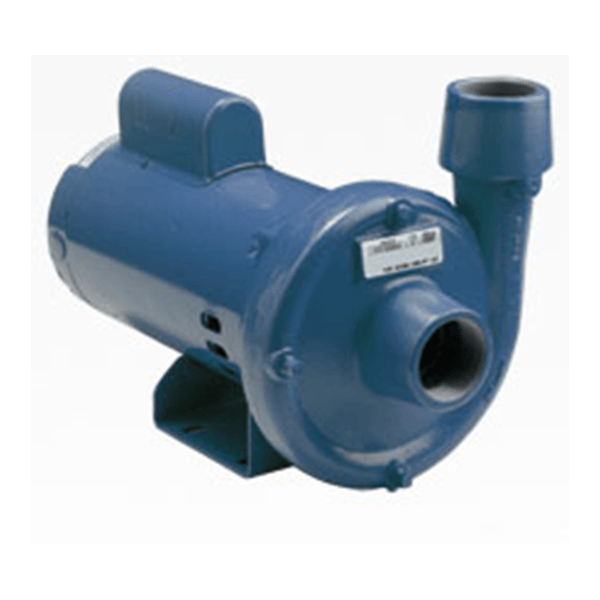

Franklin Electric FAC Series Liquid Transfer Pump – Applications for: Water circulation, booster service, liquid transfer, spraying systems, jockey pump, general service.

Please contact us for a quote

(403) 252-5477

Description

Features
- Volute: Cast iron, can be rotated for ease of installation. Tapped openings provided for draining.
- Impeller: Enclosed design for high efficiency. Cast iron construction.
- Mechanical Seal: GL-SiC/GL-SiC x Viton® elastomers and 300 series stainless components.
- Motor: 3600 rpm, 56J, C-Face, open-drip-proof. Designed for continuous operation.
- Mounting: Can be mounted in vertical or horizontal position.
Specifications
- Capacities: to 60 gpm
- Heads: to 130 feet
- Working Pressure: 75 psi max
- Temperature: 212 oF max
- Rotation: clockwise viewed from motor end
- Pipe Connections: NPT
Applications
- Water Circulation
- Booster Service
- Liquid Transfer
- Spraying Systems
- Jockey Pump
- General Service

Additional information

Product Category	Liquid Transfer Pumps
Series	FAC
Manufacturer	Franklin Electric
Models	Technical Data FAC-100 Performance FAC-100 Parts FAC-100 , Technical Data FAC-150 Performance FAC-150 Parts FAC-150 , Technical Data FAC-200 Performance FAC-200 Parts FAC-200 , Technical Data FAC-300 Performance FAC-300 Parts FAC-300 , Technical Data FAC-50 Performance FAC-50 Parts FAC-50 , Technical Data FAC-500 Performance FAC-500 Parts FAC-500 , Technical Data FAC-75 Performance FAC-75 Parts FAC-75

Technical Data
Parts

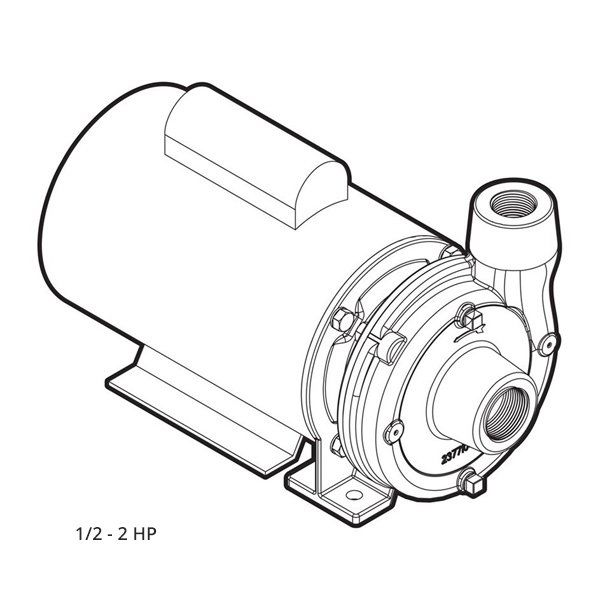

- FAC-Series 1/2 – 2 Parts

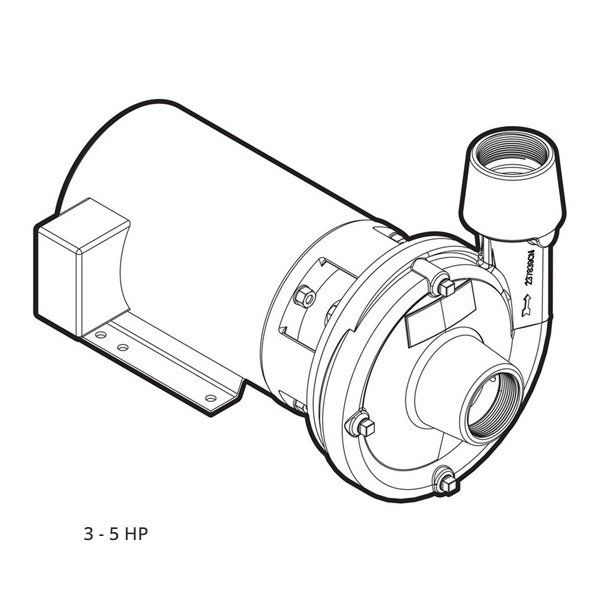

- FAC Series 3 – 5 HP Parts
Performance Data

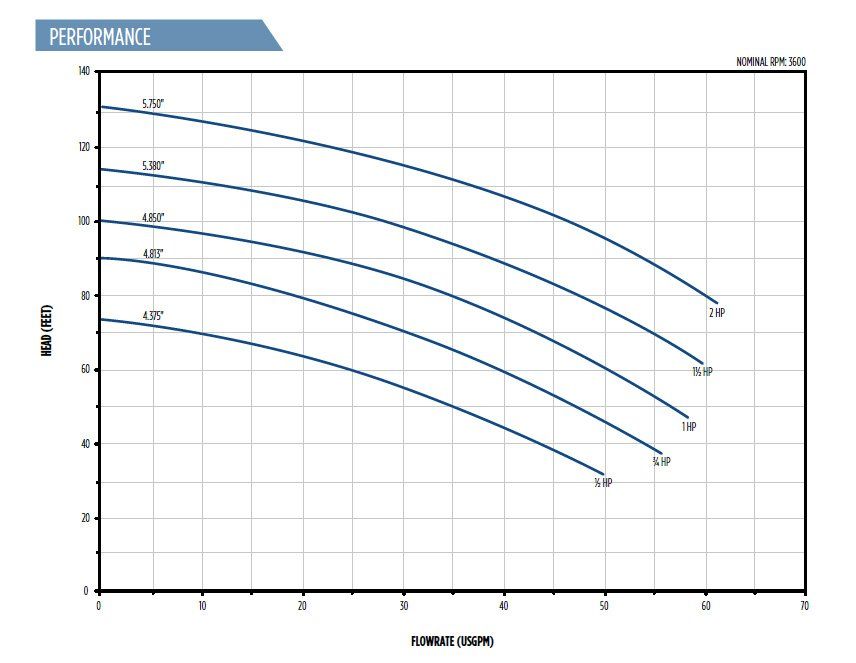

- - FAC 1/2 – 2HP Series Performance Curves

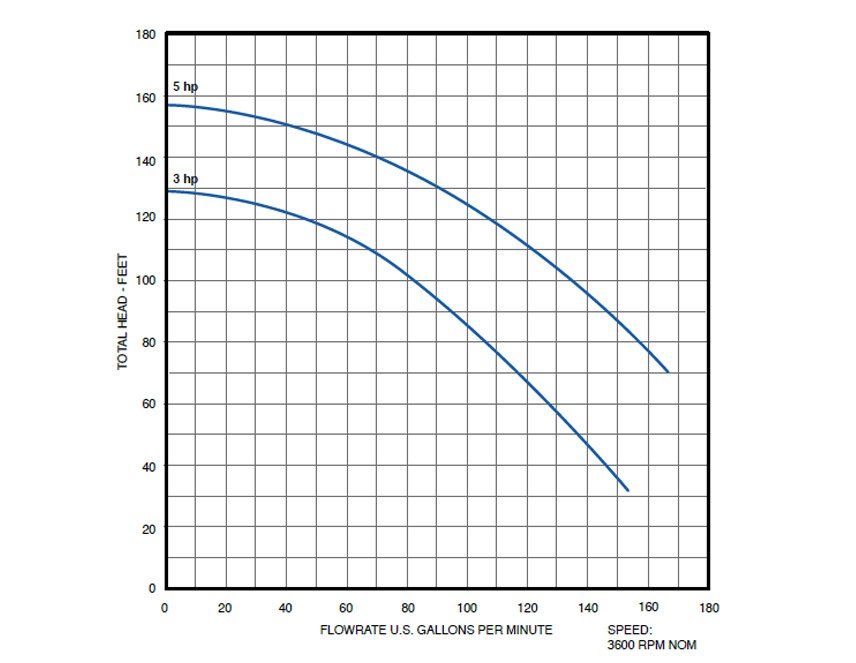

  - FAC 3 – 5HP Series Performance Curves
