Description

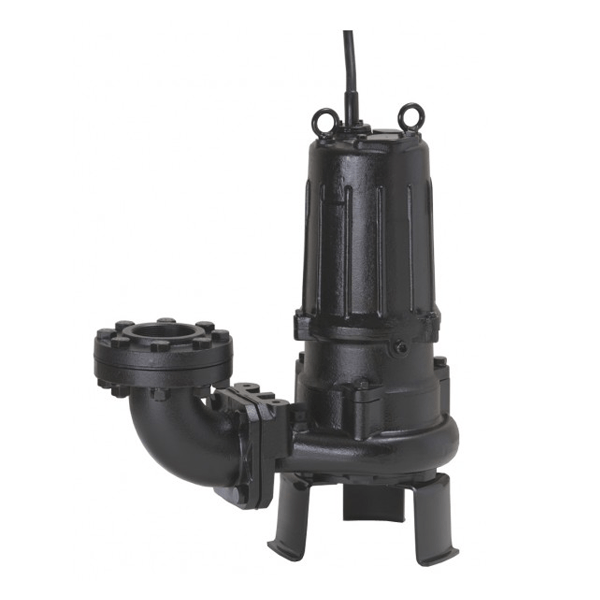

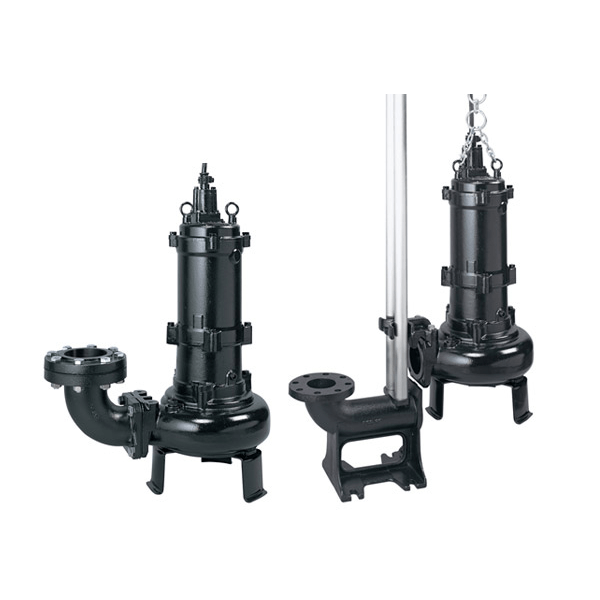

The Tsurumi Pump B-series is a submersible channel impeller pump designed for handling raw sewage, wastewater and heavy-duty industrial applications, where the pump is subject to complete submersion and requires maximum reliability. The B-series has a proven track record for offering long life in both continuous and intermittent sump applications. It is available as an extended line-up from 50 to 800mm discharge bores.

• Semi-open, single vane impellers (1 hp – 5 hp models)
• Enclosed multi-vane impellers (7.5 hp – 300 hp models)
• Field adjustable/replaceable wear plates
• Highly efficient air filled motors for continuous duty operation
• Available with class E, B, F insulation to minimize operation costs. Double inside mechanical seals with Sic-Sic faces operate in a separate oil-filled chamber.
• Anti-wicking block prevents water incursion to the stator if cable is accidentally damaged
• Double-shielded, permanently lubricated high-temp C3 ball bearings rated for B-10 life of 60,000 hours
• Water jacket ensures perfect water cooling by circulating drainage around the motor housing (available on 30 hp or above)

Additional information

Technical Data

• • B Series Technical Data

Performance Data
