Description

The Grundfos Hydro Solo-E boosting system ensures that the correct head and flow are delivered where and when necessary. Whether you are working with water pressure in a multi storey building or providing water for industrial or municipal applications, you can count on Grundfos to keep the flow and pressure needed.

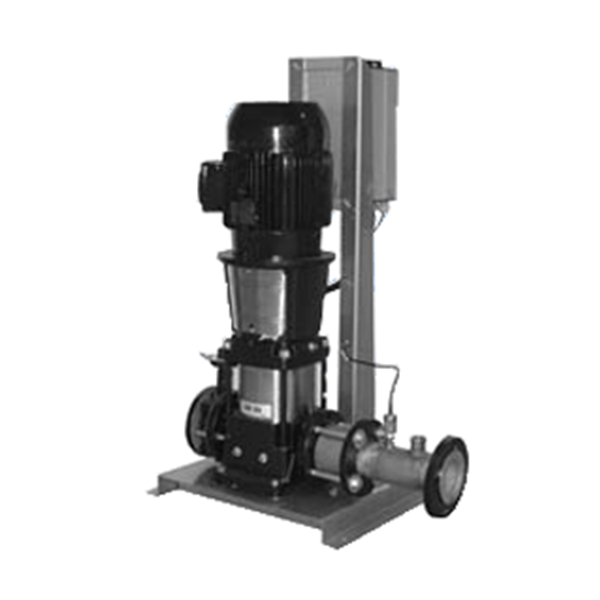

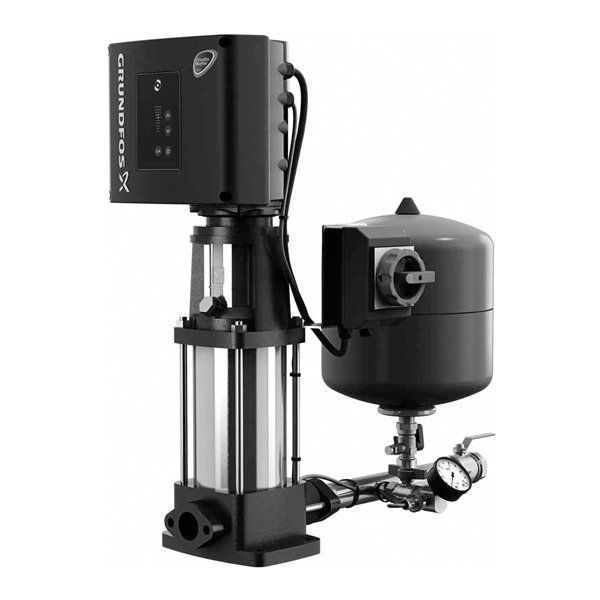

Unique to Canada, Grundfos Hydro Solo-E single pump booster systems consist of one speed-controlled CR pump fitted with isolating valves, check valve, discharge manifold, pressure transducer, pressure gauge and diaphragm tank.

The included CR pump is available with a Grundfos standard motor (CR pumps) or a frequency-controlled motor (CRE pumps). All pumps are equipped with a maintenance-free cartridge mechanical shaft seal.

Application

The Grundfos Hydro Solo-E is suitable for pressure boosting applications in:

• Commercial buildings
• Institutions
• Municipalities

Features and Benefits

• Eliminates control valves and problematic pressure storage tanks
• Harmonic distortion protection built in
• Lower energy consumption
• Less pump noise
• Easy to set up and operate
• Comprehensive protection of drive, motor and pump equipment
• Reduced maintenance
• Eliminates current in-rushes on the AC line
• Protection from extreme voltage and temperature conditions Low energy consumption

Additional information

Technical Data

• • Grundfos Hydro Solo-E Series

Performance Data
