Barnes

EP Series

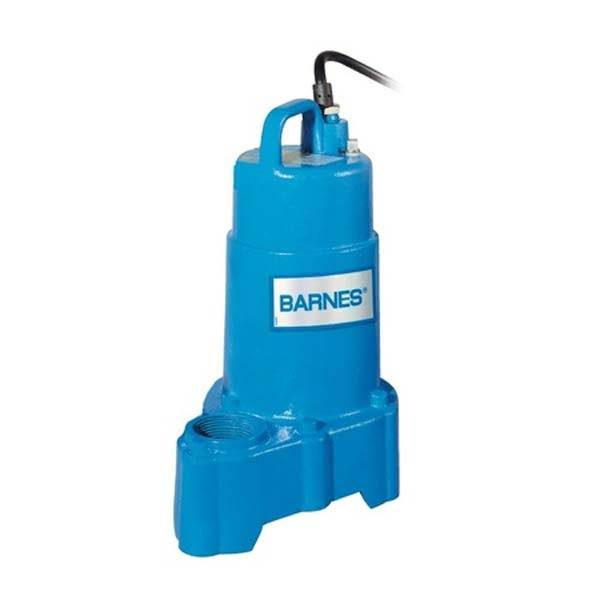

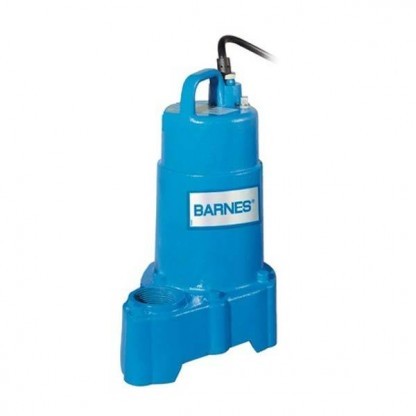

Barnes Pumps EP Series EP52 & EP72 Effluent / Sump Pumps feature 230 volt 1 phase operation in a rugged cast iron, heavy duty, high performance design. Barnes Effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor's pumps.

Please contact us for a quote



  • Description

    EP52X & EP72X Series

    Barnes Pumps EP Series EP52 & EP72 Effluent / Sump Pumps feature 230 volt 1 phase operation in a rugged cast iron, heavy duty, high performance design. Barnes Effluent pumps save time and replacement costs because they are interchangeable with competing effluent models. They require no additional plumbing when replacing most competitor’s pumps.

    Features and Benefits

    Product features for superior performance

    • Maximum flow rate to 90 GPM (EP72) and 83 GPM (EP52).
    • Maximum shut off head of 31 ft.
    • Stainless steel shaft and hardware provide excellent corrosion resistance.
    • Permanent Split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw.
    • Interchangeable with other effluent pumps.

    Design Options

    • Vertical or tethered floats are easily adjusted for varying conditions.
    • All switches come with standard 20’ cord.
    • Manual models available if preferred.
    • Models: EP52X – EP72X
    • Motor: 1/2 hp – 3/4 hp
    • RPM: 3450
    • Electrical: 240v 1ph
    • Construction: Cast Iron
    • Discharge: 1.5″
    • Solids: .75″

    General Description

    Effluent / Sump Pump Series

    Design Features

    • Vortex impeller design provides ¾” spherical solids handling capability
    • Upper and lower ball bearings are oil lubricated for maximum life
    • Silicon carbide mechanical seal faces provide outstanding grit resistance
    • Industrial-style motors, contained in a cast iron housing, are oil filled for optimum cooling and long life
    • Pump provided with protective high temperature overload switch
    • Unit provided with power cord including molded NEMA 6-15P plug for 230V single phase operation.
    • Cast Iron vortex impeller
    • CSA Listed
    • 12 month limited warranty
  • Additional information

    Pump Type Effluent Pumps
    Series EP, EP52X, EP72X
    Models
    ,
    ,
    ,
    ,
    ,
    Manufacturer Barnes
