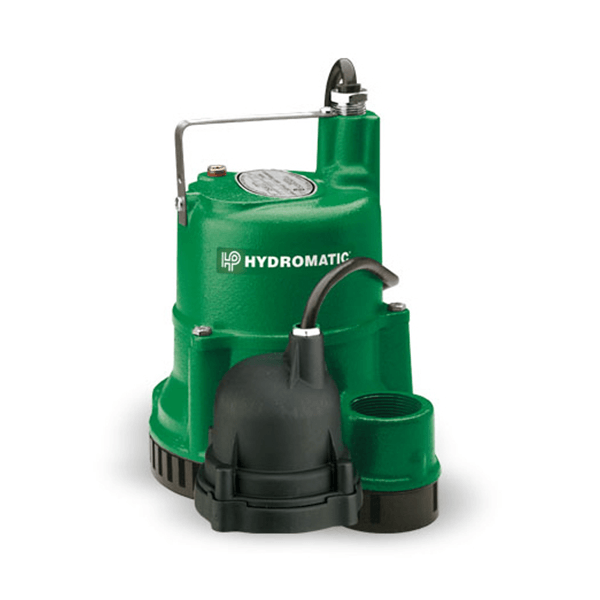

Hydromatic

VS33 Series

The Hydromatic® classic submersible pump series is specifically designed to meet the demands of residential sump and septic tank effluent applications. The 1-1/2 inch NPT discharge pump is a 1/3 horsepower, energy-efficient motor, in both automatic and manual configurations, and can handle capacities up to 47 gallons per minute and heads to 26 feet

Please contact us for a quote



  • Description

    1/3 & 1/2 HP Cast Iron Sump Pumps

    Durable 1/3 and HP submersible sump pumps.

    Key Features

    • Carbon-Ceramic Mechanical Shaft Seal
    • Oil-Filled Motor with Automatic Reset Thermal Overload
    • Uses Single-Row Ball Bearing Construction
    • Piggyback Plug for Easy Maintenance and Replacement
    • BODY CONSTRUCTION: Cast Iron & Engineered Thermoplastic
    • HORSEPOWER: Available in 1/3 or 1/2 HP
    • MAXIMUM HEAD: S_33: 26 ft. (7.9 m) / S_50: 29 ft. (8.8 m)
    • MAXIMUM CAPACITY: S_33: 48 GPM (3.0 LPS) / S_50: 65 GPM (4.1 LPS)
    • FLOW at 10′ LIFT: S_33: 40 GPM / S_50: 54 GPM
    • SWITCH TYPE: Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
    • MINIMUM SUMP DIAMETER: S_33: 18″ (457.2 mm) / S_50: 18″ (457.2 mm)
    • DISCHARGE PIPE SIZE: 1-1/2″ NPT
    • MAXIMUM SOLIDS HANDLING SIZE: S_33: 3/8″ (9.5mm) / 3/4″ (19.1 mm)
    • AMP DRAW (full load): S_33: 10 Amps / S_50: 12 Amps
    • CORD LENGTH: 10′, SJTW (20′ optional)
    • VOLTAGE: 115v AC, 60 Hz
    • MAXIMUM WATER TEMPERATURE: 120°F (49°C)
    • IMPELLER CONSTRUCTION: Thermoplastic
  • Additional information

    Manufacturer Hydromatic
    Series VS33
