Hydromatic
SW33 Series

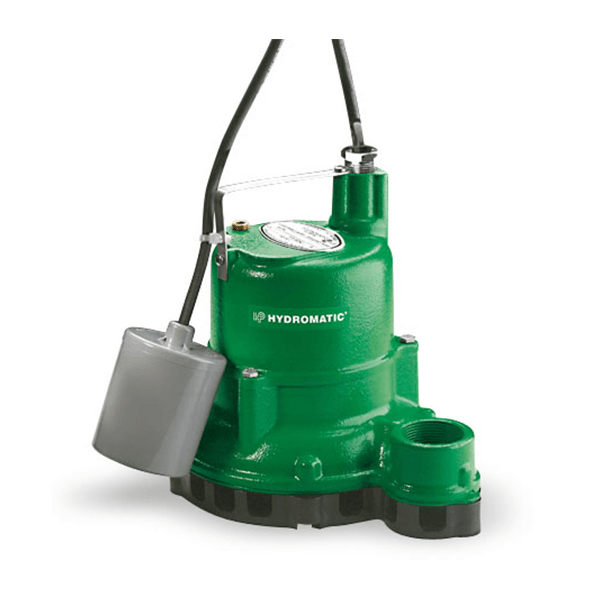

The Hydromatic® classic submersible pump series is specifically designed to meet the demands of residential sump and septic tank effluent applications. The 1-1/2 inch NPT discharge pump is a 1/3 horsepower, energy-efficient motor, in both automatic and manual configurations, and can handle capacities up to 47 gallons per minute and heads to 26 feet
-
Description
1/3 & 1/2 HP Cast Iron Sump Pumps
Durable 1/3 and HP submersible sump pumps.
Key Features
- Carbon-Ceramic Mechanical Shaft Seal
- Oil-Filled Motor with Automatic Reset Thermal Overload
- Uses Single-Row Ball Bearing Construction
- Piggyback Plug for Easy Maintenance and Replacement
- BODY CONSTRUCTION: Cast Iron & Engineered Thermoplastic
- HORSEPOWER: Available in 1/3 or 1/2 HP
- MAXIMUM HEAD: S_33: 26 ft. (7.9 m) / S_50: 29 ft. (8.8 m)
- MAXIMUM CAPACITY: S_33: 48 GPM (3.0 LPS) / S_50: 65 GPM (4.1 LPS)
- FLOW at 10′ LIFT: S_33: 40 GPM / S_50: 54 GPM
- SWITCH TYPE: Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
- MINIMUM SUMP DIAMETER: S_33: 18″ (457.2 mm) / S_50: 18″ (457.2 mm)
- DISCHARGE PIPE SIZE: 1-1/2″ NPT
- MAXIMUM SOLIDS HANDLING SIZE: S_33: 3/8″ (9.5mm) / 3/4″ (19.1 mm)
- AMP DRAW (full load): S_33: 10 Amps / S_50: 12 Amps
- CORD LENGTH: 10′, SJTW (20′ optional)
- VOLTAGE: 115v AC, 60 Hz
- MAXIMUM WATER TEMPERATURE: 120°F (49°C)
- IMPELLER CONSTRUCTION: Thermoplastic
-
Additional information
Manufacturer Hydromatic Series SW33 Models -
