Description

Applications

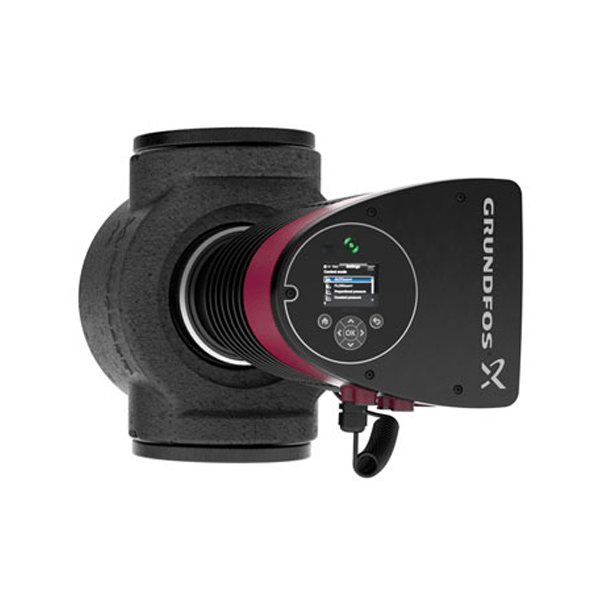

• The Grundfos MAGNA3 circulator pumps are designed for circulating liquids in the following systems:
  • Heating systems
  • Air-conditioning and cooling systems
  • Domestic hot-water systems.
• The pump range can also be used in the following systems:
  • Ground source heat pump systems
  • Solar-heating systems.

Features

• AUTOADAPT
• FLOWADAPT and FLOWLIMIT
• Proportional-pressure control
• Constant-pressure control
• Constant-temperature control
• Constant-curve duty
• Max. or min. curve duty
• Automatic Night Setback
• No external motor protection required
• Insulating shells supplied with single-head pumps for heating systems
• Large temperature range where the liquid temperature and the ambient temperature are independent of each other.

Benefits

• Low energy consumption.
• The AUTOADAPT function ensures energy savings
• Built-in differential-pressure and temperature sensor
• Safe selection
• Simple installation
• No maintenance and long life
• Extended user interface with TFT display
• Control panel with self-explanatory push-buttons made of high-quality silicone
• Work log history
• Easy system optimization
• Heat energy meter
• Multi-pump function
• External control and monitoring enabled via add-on modules

The complete range is available for a maximum system pressure of 16 bar (PN 16).

Grundfos GO

• The mobile tool box for professional users on the GO.
• It gives you intuitive handheld pump control, and full access to all the Grundfos Online tools on the go.
• Grundfos GO consists of two Apps: GO Remote and GO CAPS.

Grundfos GO Remote

• Gives you intuitive handheld pump control.
• Save valuable time on pump control, data collection and reporting with the most comprehensive mobile platform on the market.
• Grundfos GO Remote works with all our E-pumps and communicates both using both radio and infra-red technology.
• It provides easy-to-follow tips and guidance as well as live pump data feeds.

Grundfos Go Overview

• To communicate with the pumps, special hardware (Mobile Interfaces) from Grundfos is required.
• The Grundfos GO Remote app can be downloaded for free for both Apple iOS and Android devices.
• While connected to a Grundfos product, the following features are available:
  • Product dashboard – gives the user a quick overview of the connected product
  • Status data – monitor status data from the Grundfos product
  • Alarms and warnings – see detailed alarm information with timestamps
  • Configuration/commissioning
  • Create installation report in pdf format
  • Read/write profiles – copy configuration from one product to another
  • Supports 28 languages

Grundfos GO CAPS

• GO CAPS works on-line and supports all the basic CAPS functionalities.
• It is available for Apple iOS devices only, and is free to download. The detailed features are:
  • Search product by: Number, Name or QR code
  • Size a product (Heating, Air-conditioning, Pressure boosting & Wastewater)
  • Catalog
  • Replace product
  • Compare products
  • Product view
  • Projects
  • Favorites
  • Supports 11 local languages

Additional information

Technical Data

• • Magna3 Technical Data

Performance Data
