Leo SJT100-1 Shallow Well Jet Pump
-
Description

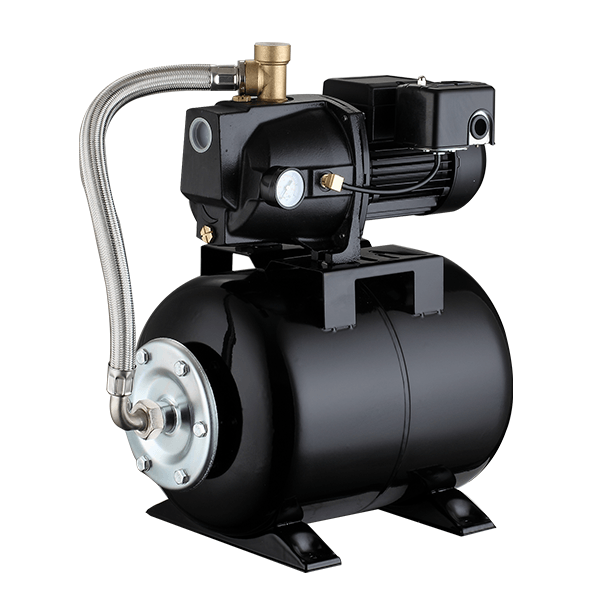

Leo SJT100-1 Shallow Well Jet Pump with 6 Gallon Pressure Tank
Features and Benefits
- For use on shallow well applications up to 25ft water level.
- Durable cast iron pump housing.
- Built-in thermal overload protection.
- Fully automatic water supply.
- Dedicated priming port for volute filling.
- 1.25″ NPT suction and 1″ NPT discharge.
- Complete with 6 gallon tank.
Specifications
- Inlet: NPT1
- Discharge: NPT1
- Motor Housing: ZL102
- Pump Body: HT200
- Switch Type: Press switch
- Impeller: PPO-GF30
- Seal Design: Mechanical Seal
- Seal Material: Graphite and Ceramic
- Oil Filled Motor: No
- Gross Weight: 32 lbs
- Package Size: 197x118x205
- Expected Life Cycle: ON 2 SEC OFF 2 SEC. 300,000 Cycles
- Motor Wires: Copper
- Self-Priming: No
- Certification: CSA
Model HP Voltage AMP Discharge NPT(in) Max. Head Ft GPH of water @ Total Ft. of Head 5 ft 10 ft 15 ft 20 ft 25 ft SJT100-1 1 115/230 4.8/9.6 1 180 1200 1080 960 780 -
Additional information
Weight 14.5 kg Dimensions 197 × 118 × 205 cm Product Category Jet Pumps, Well Pumps, Pressure Boosting Pumps Series SJT100-1 Manufacturer Leo Models - Technical Data
- SJT100-1
Horsepower 1 Voltage 115/230 Amps 4.8/9.6 Part Number SJT100-1 -
