Description

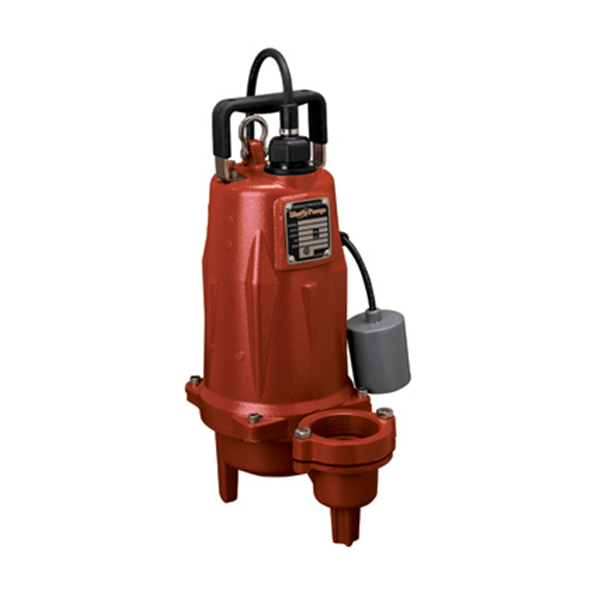

The LEH150 by Liberty is a high head 2″ solids-handling sewage pump. The LEH150 features Liberty’s unique one-piece cast iron body and quick-disconnect cords in 25′ standard length.

Available in 2″ or 3″ flanged discharge and a variety of voltages, the LEH150 has a maximum head of 70 feet and is backed by Liberty’s 3-year warranty.

Features

• Rugged 2 vane, semi-open cast iron impellers
• Cast iron housing and volute with all stainless fasteners
• 416 stainless steel rotor shaft
• Oil-filled, hermetically sealed motors
• Built-in thermal protection on single phase models
• 2″ or 3″ flanged discharge
• Permanently lubricated upper and lower ball bearings
• Dual shaft seals
• Single float mechanical level control with series plug for manual bypass operation–standard on single-phase automatic models
• Quick-disconnect 25′ standard power cord allows replacement of cord in seconds without breaking seals to motor

Additional information

Technical Data

• • LEH150 Series Technical Data

Parts

• LEH152A2 (B54)
• LEH152A2 (B67)
• LEH152A2-2 (B67)
• LEH152A3 (B54)
• LEH152A3 (B67)
• LEH152A3-2 (B67)
• LEH152M2 (B54)
• LEH152M2 (B67)
• LEH152M2-2 (B67)
• LEH152M2-3E (B84)
• LEH152M3 (B54)
• LEH152M3 (B67)
• LEH152M3-2 (B67)
• LEH152M3-3E (B84)
• LEH153M2 (B54)
• LEH153M2 (B67)
• LEH153M2-2 (B67)
• LEH153M2-3 (B67)
• LEH153M2-3E (B84)
• LEH153M2-5 (B67)
• LEH153M2-5
• LEH153M3 (B54)
• LEH153M3 (B67)
• LEH153M3-2 (B67)
• LEH153M3-3 (B67)
• LEH153M3-3E (B84)
• LEH153M3-5 (B67)
• LEH154M2 (B54)
• LEH154M2 (B67)
• LEH154M2-2 (B67)
• LEH154M2-3 (B67)
• LEH154M2-3E (B84)
• LEH154M2-5 (B67)
• LEH154M3 (B54)
• LEH154M3 (B67)
• LEH154M3-2 (B67)
• LEH154M3-3 (B67)
• LEH154M3-3E (B84)
• LEH154M3-5 (B67)
• LEH155M2 (B54)
• LEH155M2 (B67)
• LEH155M2-2 (B67)
• LEH155M2-3 (B67)
• LEH155M2-5 (B67)
• LEH155M3 (B54)
• LEH155M3 (B67)
• LEH155M3-2 (B67)
• LEH155M3-3 (B67)
• LEH155M3-5 (B67)

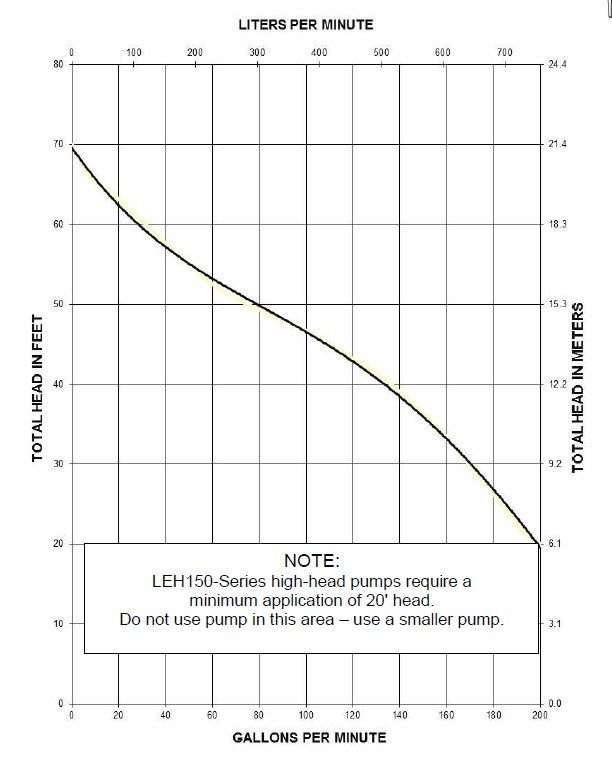

Performance Data
