Barnes
EH Series

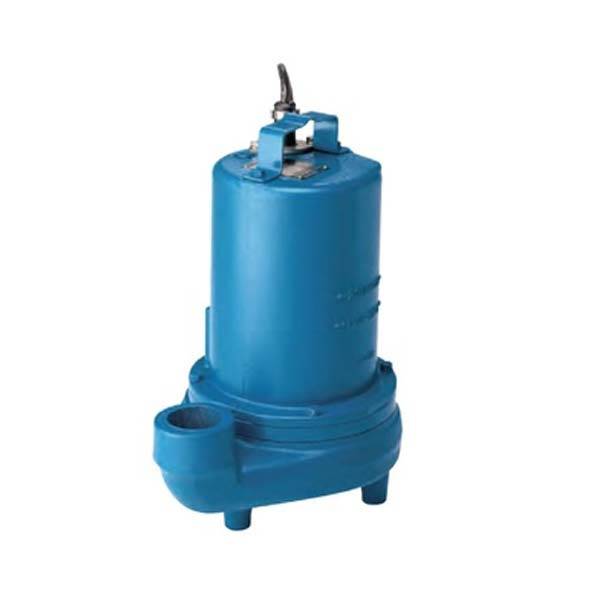

Barnes Pumps EH Series Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. Special high temperature EH-HT models are available. A Barnes effluent pump is specifically designed to handle almost all low and high head effluent applications.
-
Description
EH-L & EH-DS Series
Barnes Pumps EH Series Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. Special high temperature EH-HT models are available. A Barnes effluent pump is specifically designed to handle almost all low and high head effluent applications.
Features
- Motor: 1/2 hp, 1 hp & 1 1/2 hp
- RPM: 3450
- Electrical:
- 115v 1ph (1/2 hp only)
- 230v 1ph & 3ph
- 460v 3ph
- 575v 3ph
- Cord Length: 20′
- Construction: Cast Iron
- Impeller: Polypropylene
- Discharge: 2″
- Solids: .75″
- Automatic Operation (manual available): No
-
Additional information
Product Category Sump Pumps Series EH, EH-DS, EH-L Manufacturer Barnes Models , , , , , , , , , , , , , , , , , , , , , , , , , Horsepower 1, 1/2, 1 1/2 RPM 3450 -
Technical Data
-
Parts
-
Performance Data
