Little Giant

9S-SMPXC-LG

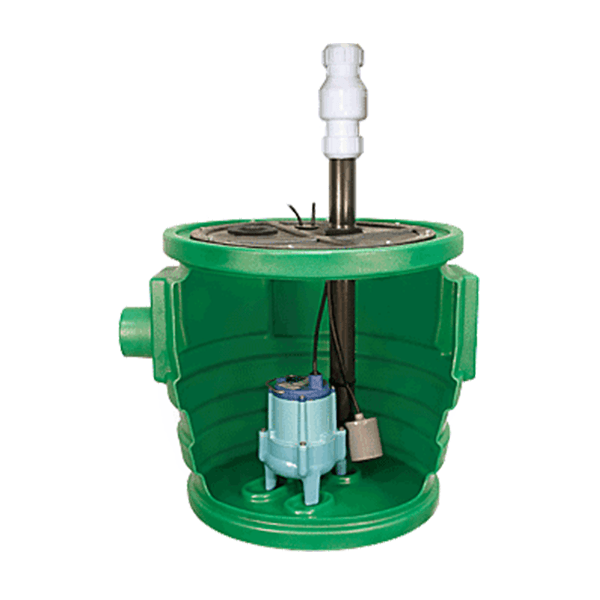

Little Giant 9S-SMPXC-LG Packaged System: New Pit+Plus® Jr. simplex systems are specifically designed for areas with rocky terrain or when digging is difficult due to soil conditions. The larger capacity of the Pit=Plus jr. extends the pump life by reducing pumping cycles.

Please contact us for a quote



  • Description

    • Our new Pit+Plus® Jr. simplex systems are specifically designed for areas with rocky terrain or when digging is difficult due to soil conditions.
    • The larger capacity of the Pit=Plus jr. extends the pump life by reducing pumping cycles.
    • Systems are designed to handle liquid and solid waste materials up to 2″ in diameter using Little Giant’s 9S or 10S sewage ejector pumps.
    • The systems are available pre-packaged or pre-assembled with one-piece or two-piece structural foam covers.
    • One-piece covers available with slip-fit or bolt-on vent and discharge flanges.
    • Two-piece covers available with bolt-on flanges only.
    • Use for homes, farms, light commercial and industrial applications, sewage and effluent collection, drainage and seepage water.

    Features:

    • Roto-molded polyethylene basin in two size options: 20″ x 30″ or 24″ x 24″
    • Radial rib design for extra strength
    • 360º molded handle for easy handling
    • Molded torque stops at basin bottom to secure pump
    • 4″ molded external inlet hub for flexible coupling
    • Structural foam or IAPMO approved steel cover options available
    • One- or two-piece cover options available
    • Slip-fit or bolt-on cover flange options available
    • 4/10 HP or 1/2 HP sewage pump options available
  • Additional information

    Pump Type Packaged Systems
    Series 9S-SMPXC-LG
    Manufacturer Little Giant
    Models
    ,
  • Technical Data

Quick Data Select
