Armstrong
4380 Series

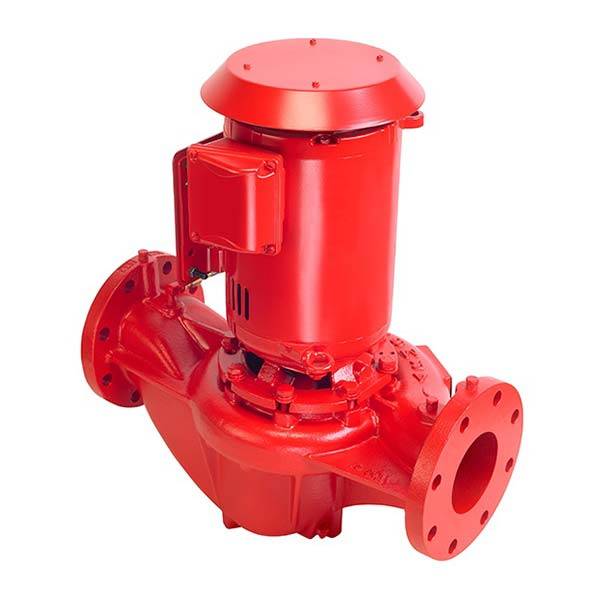

Armstrong 4380 Series Vertical Inline Close Coupled Pump: The Armstrong 4380 pipe-mounted pumps are designed for space-saving installation and long service life
-
Description
4380 Design Features
- Industry standard face mounted motor.
- Flush and vent connection removes entrained air and ensures liquid at seal face at all times.
- Inside type mechanical seal with Silicon carbide seat, serviceable without breaking pipe connections.
- Heavy cylindrical bracket with 360° register on both flanges provides a rigid union of pump and motor.
- Dynamically balanced impeller assures smooth vibrationfree operation.
- Radially split casing with equal suction and discharge flange sizes. Separate tapped openings for gauge, flush and drain connections.
- Liberal inlet passageways and straightening vanes provide optimum suction performance and quiet operation.
- Ribs cast integral with casing. Machined surface to accept floor support when specified.
- Confined casing gasket to meet stringent industrial temperature and pressure applications.
-
Additional information
Product Category Vertical Inline Close Coupled Series 4380 Manufacturer Armstrong Models , , -
Technical Data
-
- 4380 60hz 1.5×1.5×6
- 4380 60Hz 1.5×1.5×8
- 4380 60hz 2x2x6
- 4380 60Hz 2x2x8
- 4380 60Hz 2x2x10
- 4380 60hz 3x3x5L
- 4380 60hz 3x3x6
- 4380 60Hz 3x3x8
- 4380 60Hz 3x3x10
- 4380 60Hz 3x3x13
- 4380 60hz 4x4x6
- 4380 60Hz 4x4x8
- 4380 60Hz 4x4x10
- 4380 60Hz 4x4x11.5
- 4380 60Hz 4x4x13
- 4380 60hz 5x5x8
- 4380 60Hz 5x5x11.5
- 4380 60Hz 5x5x13
- 4380 60Hz 5x5x13H
- 4380 60Hz 6x6x6
- 4380 60Hz 6x6x8
- 4380 60Hz 6x6x10
- 4380 60Hz 6x6x11.5
- 4380 60Hz 6x6x13
- 4380 60Hz 6x6x13H
- 4380 60Hz 8x8x8
- 4380 60Hz 8x8x10
- 4380 60Hz 8x8x11.5
- 4380 60Hz 8x8x13
-
-
Parts
-
Performance Data
