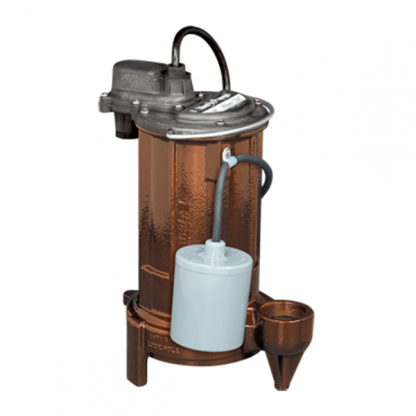

Liberty Pumps
290 Series
The Liberty 290 series provides a cost effective “midrange” pump for on-site waste water systems, liquid waste transfer and commercial heavy-duty sump pump applications that require higher head or more flow. Designed around Liberty’s unique “Uni-Body” casting, the 290-Series will provide years of reliable performance
-
Description
290 Series
- 3/4 hp.
- 1 1/2″ Discharge
- 3/4″ Solids Handling
Features:
- Quick-disconnect 10′ standard power cord allows replacement of cord in seconds without breaking seals to motor (other lengths available)
- Permanently lubricated upper and lower bearings
- Oil-filled, hermetically sealed motors with thermal overload protection
- Stainless steel, removable bottom screen
- Stainless steel rotor shaft
- Stainless steel fasteners
-
Additional information
Product Category Effluent Pumps Series 290 Manufacturer Liberty Pumps Models , , , , , , , -
Technical Data
-
Parts
- 290 (B39)
- 290-2 (B39)
- 290-3 (B39)
- 290-5 (B39)
- 290HV (B39)
- 290HV-2 (B39)
- 290HV-3 (B39)
- 290HV-5 (B39)
- 291 (B39)
- 291-2 (B39)
- 291-3 (B39)
- 291-5 (B39)
- 291HV (B39)
- 291HV-2 (B39)
- 291HV-3 (B39)
- 291HV-5 (B39)
- 293 (B39)
- 293-2 (B39)
- 293-2X (B39)
- 293-3 (B39)
- 293-3X (B39)
- 293HV (B39)
- 293HV-2 (B39)
- 293HV-2X (B39)
- 293HV-3X (B39)
- 297 (B59)
- 297-2 (B59)
- 297HV (B59)
- 297HV-2 (B59)
-

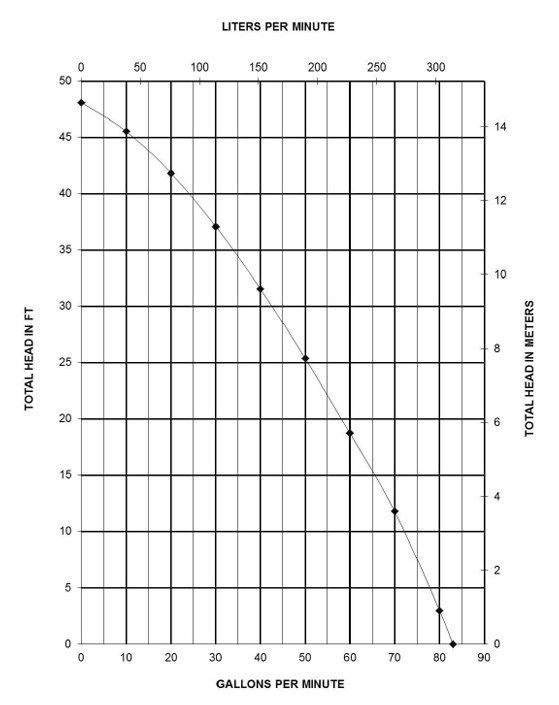

Performance Data
