Little Giant

10EN Series

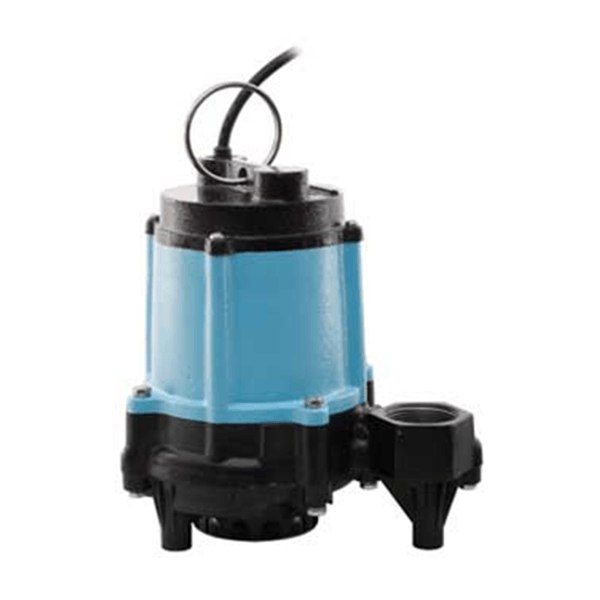

Little Giant 10EN Series pumps feature 1/2 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability.

Please contact us for a quote



  • Description

    10EN Series

    Little Giant 10EN Series pumps feature 1/2 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability.

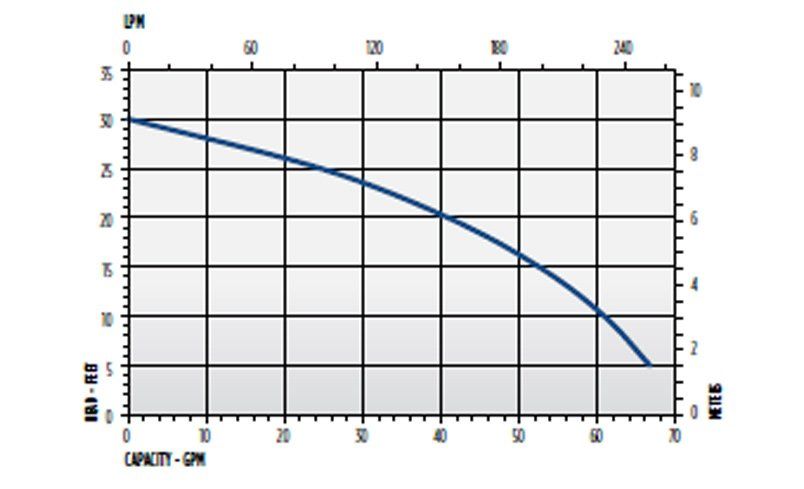

    Touting a full-load rating of only 8.0 amps the 10EN produces 67 gpm @ 5 ft. of head and a maximum shut off of 30 ft.

    In addition to a stainless intake plate, the 10EN also features a cast iron cover on the manual and RF (remote float switch) versions.

    Features:

    • 1/2 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
    • Energy saving low amp draw
    • Cooler running motor which extends pump life
    • Epoxy coated cast iron motor housing
    • Vortex impeller
    • Solids handling up to 1/2 inch diameter
    • Available in manual or automatic operation with two switch options
    • integral snap action float or piggyback mechanical float
    • On Level: 7” – 10”
    • Off Level:2” – 5”
  • Additional information

    Pump Type Effluent Pumps
    Series 10EN
    Manufacturer Little Giant
    Models
    ,
  • Technical Data

  • Parts

  • Performance Curves

Quick Data Select
