Little Giant

WRS Series

Please contact us for a quote



  • Description

    Little Giant WRS Series Sump Pumps

    Applications

    • Impractical drainage areas
    • Under sinks
    • Laundry trays

    Basin Features

    • 3.5 and 5 gallon size options
    • Polypropylene, lightweight, corrosion-resistant
    • Designed with O-rings for water tight seal
    • Cover includes removable filter for easy cleaning
    • Cover includes 1/1/2″ FNPT (38 mm) discharge and intake opening, and 2″ FNPT (5 cm) vent opening
    • IAPMO listed
    • Pre-assembled, ready to install

    Pump Features

    • 1/6, 1/3, and 4/10 hp options
    • Multiple switch options
    • cCSAus listed (pump only)

    HP Volts Hz Amps Watts Performance (GPM @ Height in Feet) Shut-Off (ft) PSI
    FLA Start 5 ft 10 ft 15 ft 20 ft
    1/6 115 60 5 6.4 380 15 12 8 21.00 9.1
    1/3 115 60 9 14.3 720 46 29 13 18.00 7.8
    1/3 230 50/60 4.5 6.3 720 46 29 13 18.00 7.8
    Item No. Model HP Volts Tank Size Switch Type/Operation On Level Off Level Cord Weight

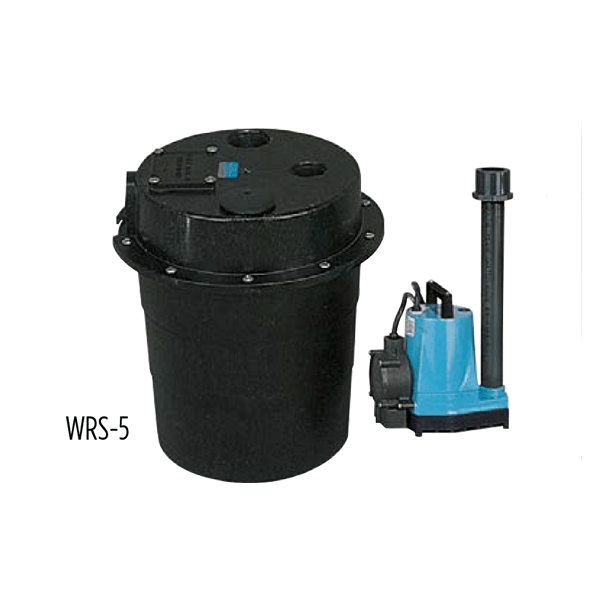

    505055 WRS-5 1/6 115 5 Gallon Piggyback Diaphragm 6″ – 9″ 1″ – 4″ 10 ft 19 lbs
    15.2 cm – 23 cm 2.5 cm – 10 cm 3 m 8.62 Kg

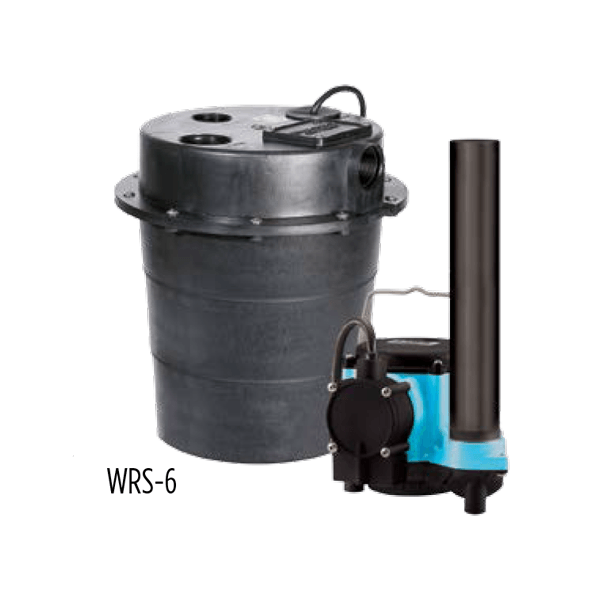

    506055 WRS-6 1/3 115 5 Gallon Integral Diaphragm 7″ – 10″ 1″ – 4″ 10 ft 26 lbs
    17.8 cm – 25.4 cm 2.5 cm – 10.2 cm 3 m 11.79 Kg
    506056 WRS-6 1/3 230 5 Gallon Integral Diaphragm 7″ – 10″ 1″ – 4″ 10 ft 27 lbs
    17.8 cm – 25.4 cm 2.5 cm – 10.2 cm 3 m 12.25 Kg
  • Additional information

    Product Category Submersible Pumps, Sump Pumps
    Manufacturer Little Giant
    Series WRS
    Models
    ,
    Part Number 505055, 506055, 506056
    Horsepower 1/6, 1/3
    Voltage 115/230
  • Technical Data

  • Parts

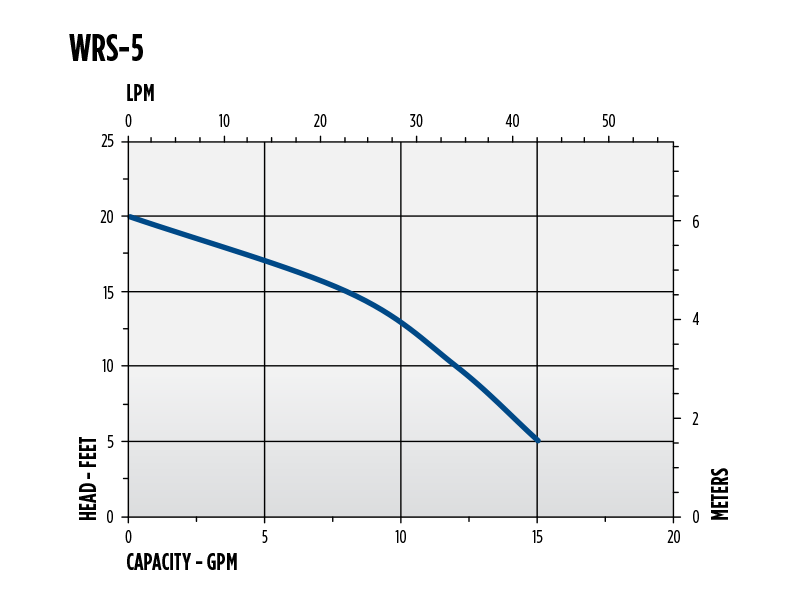

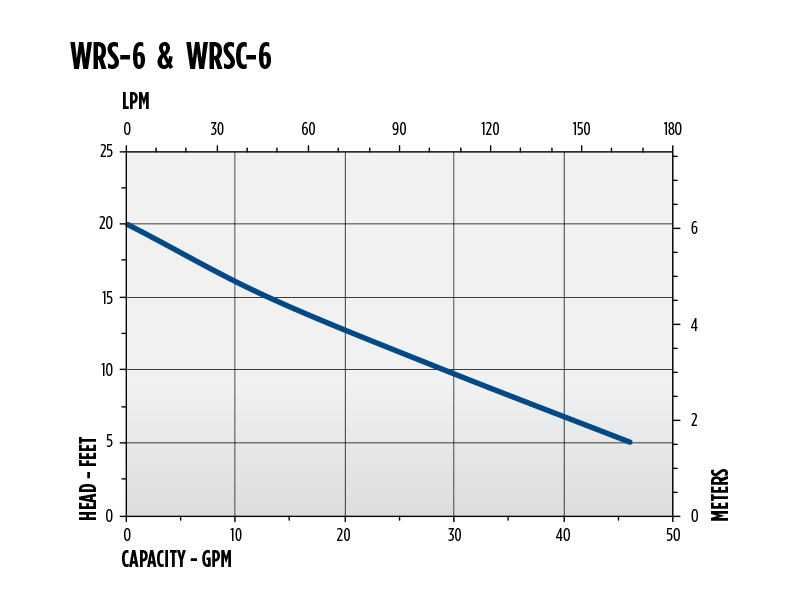

  • Performance Data

Quick Data Select
