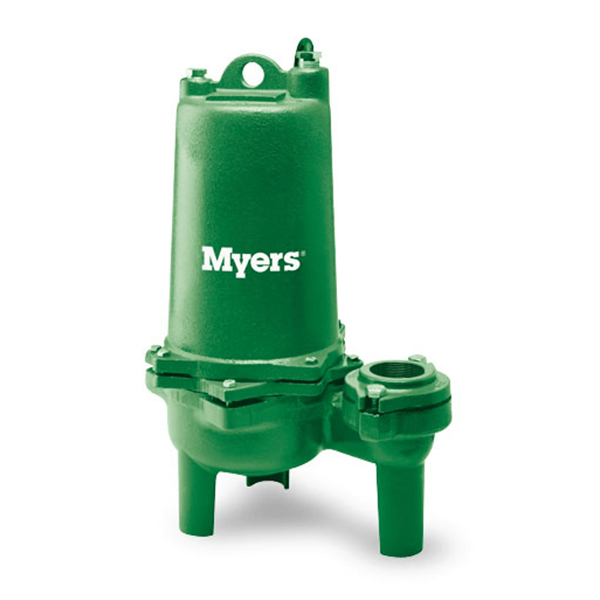

Myers

WHR5H-20H Series

The WHR5H-WHR20H Series are designed for use in light commercial & residential raw sewage and effluent applications. Delivering higher heads than standard sewage pumps. Recessed vortex impeller provides an unobstructed passage in the volute case, allowing the pump to handle stringy trash without plugging the impeller.

Please contact us for a quote



  • Description

    The WHR5H – WHR20H Series Pumps Are Designed For Use In Light Commercial & Residential Raw Sewage And Effluent Applications.

    They Deliver Higher Heads Than Standard Sewage Pumps And Will Pass 2″ Solids.
    Recessed Vortex Impeller Provides An Unobstructed Passage In The Volute Case, Allowing The Pump To Handle Stringy Trash Without Plugging The Impeller.

    Key Features:

    • Higher heads for demanding applications
    • Domestic wastewater and septic systems
    • Light commercial sewage
    • High-capacity fluid transfer
    • 1/2, 1, 1-1/2 & 2 HP models
    • Durable motor for long-lasting performance
    • Oil-filled for cooler operation and constant bearing lubrication
    • Single-phase PSC motors eliminate starting switches
    • Recessed impeller reduces radial loads and increases bearing life
    • Thermal overload protection with automatic reset
  • Additional information

    Pump Type Sewage Pumps
    Series WHR10H, WHR15H, WHR20H, WHR5H
    Manufacturer Myers
    Models
    ,
    ,
    ,
    Horsepower 1, 1 1/2, 1/2, 2
  • Technical Data

  • Parts

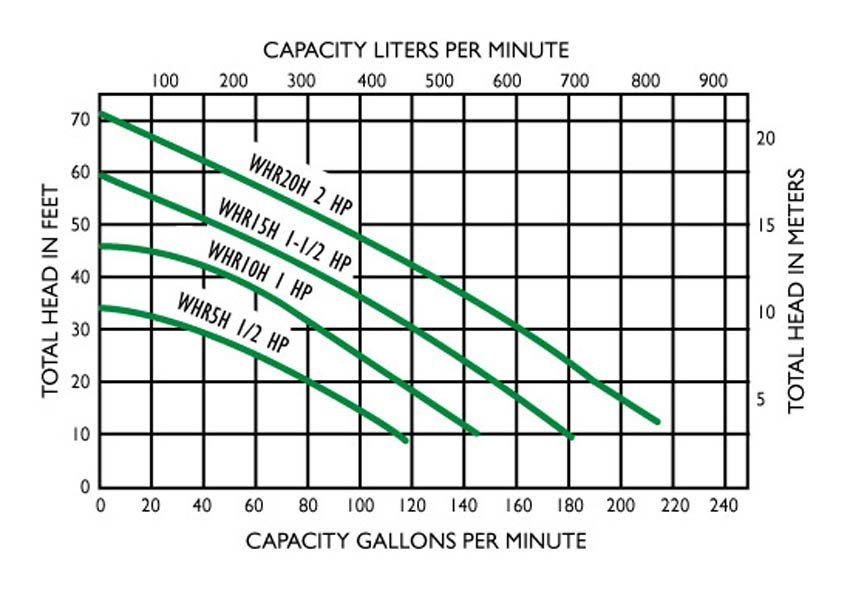

  • Performance Curves

Quick Data Select
