Description

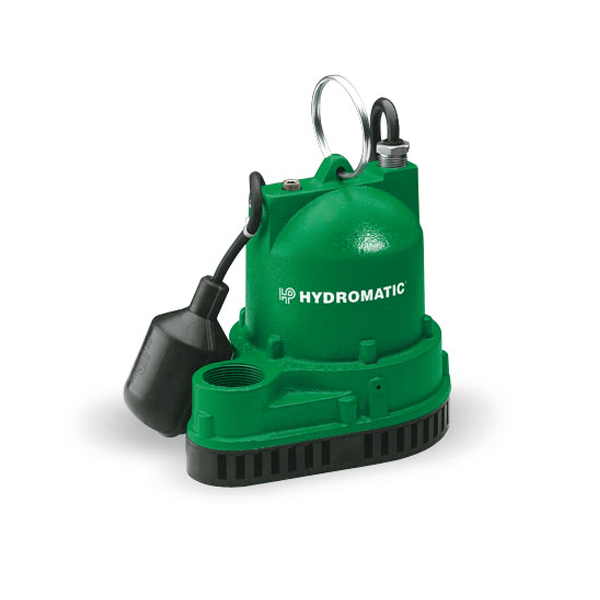

3/10 HP Cast Iron Sump Pumps

The most popular series of Hydromatic submersible sump pumps.

Key Features

• Uses Carbon-Ceramic mechanical Shaft Seal
• Single-row Ball-bearing Construction
• Oil-Filled Motor with Automatic Reset Thermal Overload Protection
• Piggyback Electrical Plug for Easy Maintenance and Replacement

• HORSEPOWER:  3/10 HP
• MAXIMUM HEAD:  25′
• MAXIMUM CAPACITY:  48 GPM
• FLOW at 10′ LIFT:  38 GPM
• SWITCH TYPE:  Available with Wide-Angle Tethered, Vertical, or Diaphragm Switch
• MIMINUM SUMP DIAMETER:  12″ for Diaphragm or Vertical Switch Models; 18″ for Tethered Switch Model
• DISCHARGE PIPE SIZE:  1-1⁄2” NPT
• MAXIMUM SOLIDS HANDLING SIZE:  1/2″
• AMP DRAW (full load):  8 Amps
• CORD LENGTH:  10′ (20′ Optional)
• VOLTAGE:  115v AC, 60 Hz
• MAXIMUM WATER TEMPERATURE:  120 degrees F (49 degrees C)
• MOTOR:  3/10 HP / Shaded Pole / 115v / 8 full-load amps

Additional information

Technical Data

• • W-A1, D-A1, V-A1

Parts

• W/D/V-A1 Series Parts

Performance Data
