VM Pump Co.

E, F & G Series

Please contact us for a quote

  • Description

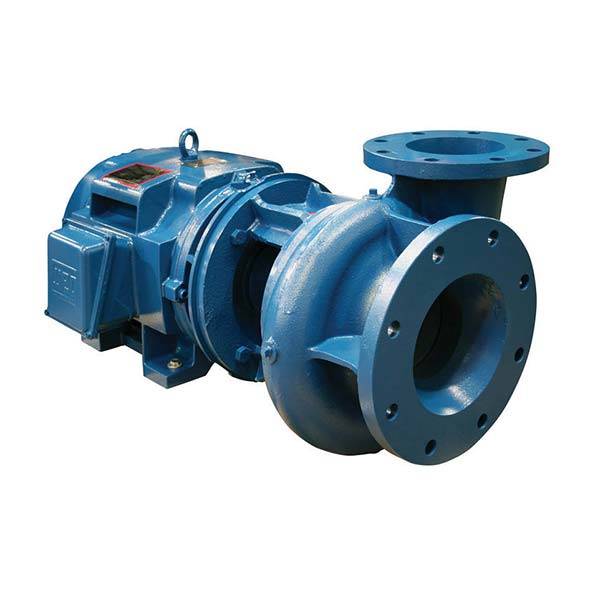

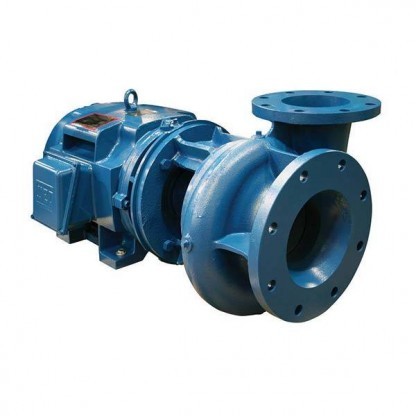

    VM Pump (Jacuzzi) E, F & G Series Pool Pump

    Originally developed by the legendary Jacuzzi Brothers the Griswold E, F & G Series of centrifugal pumps are designed for versatility!

    With capacities up to 3000 USGPM, heads to 310 feet, a broad range of sizes and configuration options and extensive performance features, the E,F & G Series proves ideal for most water pumping applications.

    E, F & G pumps are equipped with your choice of either close-coupled NEMA electric motors or frame mounted with coupling to electric motors. The E, F & G’s 360º mounting capabilities greatly extend installation options. Close-coupled configurations can be mounted vertically when space is at a premium. The E, F & G’s back pull-out design permits removal of the pump assembly for easy maintenance without disturbing pipe connections. All E,F & G models are flanged in accordance with ANSI B 16.1 for 125 PSI applications.

  • Additional information

    Manufacturer VM Pump Co.
    Product Category Pool Pumps, Pool and Spa Pumps
    Series E, F & G
    Models R2FH, R2GH, R2GM, R3EM, R3FM, R3GL, R3GM, R4EM, R4FH, R4FM, R4GH, R4GM, R5EM, R6EM, R6FL, R6FM, R8FH, RL8FH
  • Technical Data

  • Parts

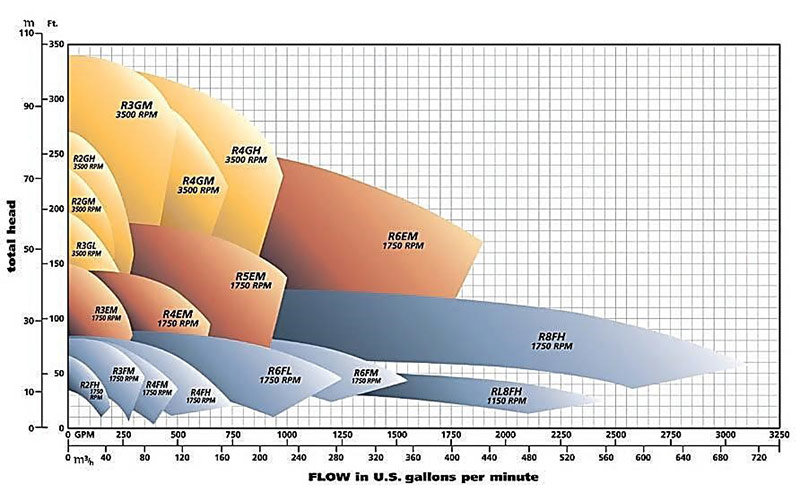

  • Performance Data
