Waterway

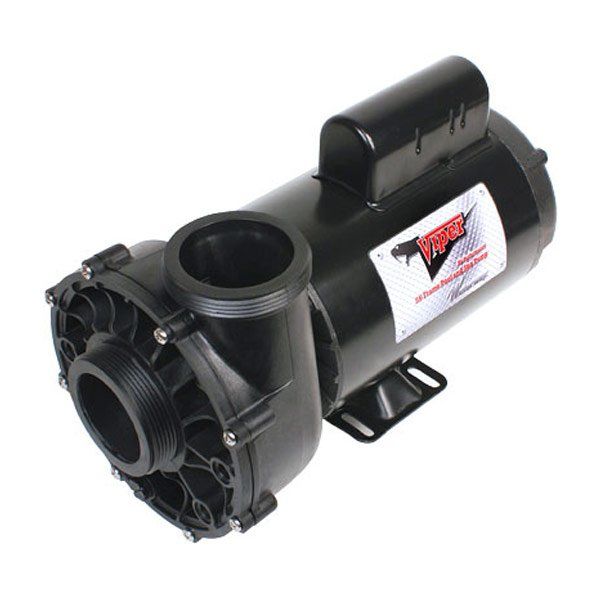

Viper – 56 Frame

Please contact us for a quote



  • Description

    Features

    • Viper wet end designed specifically for 56-frame motors
    • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
    • Two speed motors have four sets of insulated windings for increased efficiency
    • 56-frame motor for added strength, cooler operating temperature and longer motor life
    • Large 2 ½” intake for improved flow performance and reduced noise
    • Large 8″ diameter wet end for increased volume capacity
    • Split capacitor, (start and run) for less energy consumption
    • Thermally protected to extend life expectancy of motor
    • Highly versatile wet end can be rotated every 90°
    • Viton seals
  • Additional information

    Manufacturer Waterway
    Series 56-Frame, Viper
    Models 3711621-0V, 3712021-0V, 3721221-1V, 3721621-1V, 3722021-0V
  • Technical Data

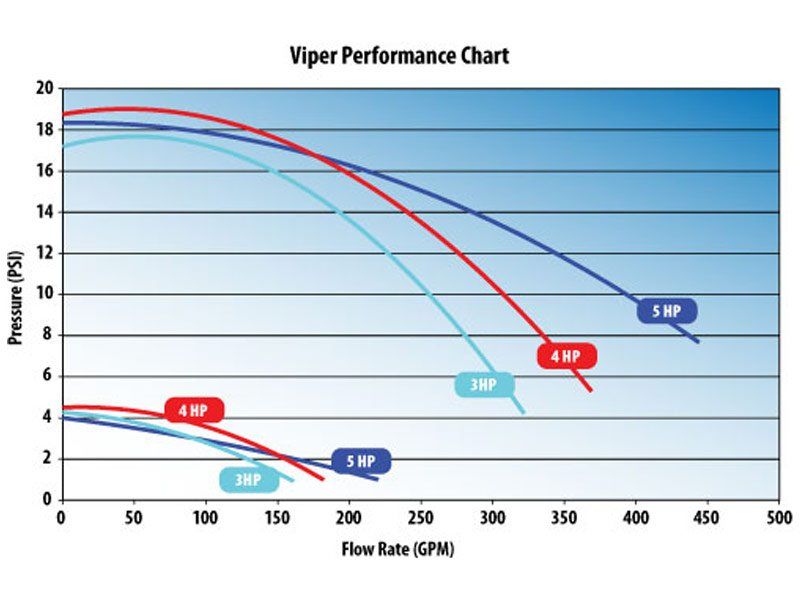

  • Performance Curves
