Description

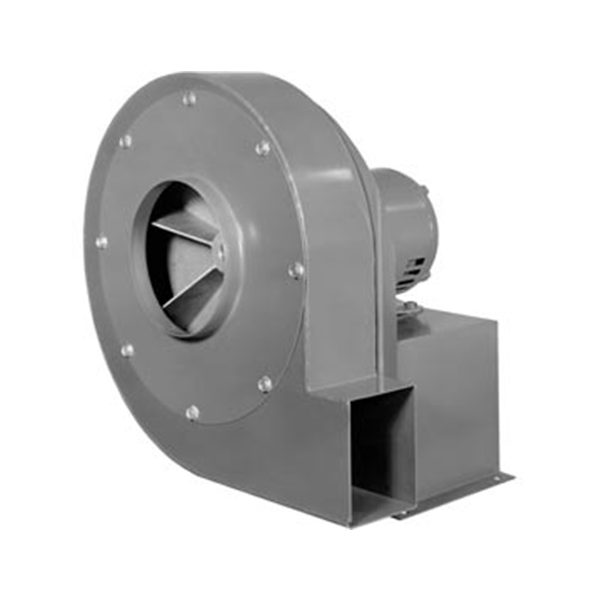

Peerless Blowers high pressure direct drive radial blower PW is generally used on industrial applications for small exhaust systems where air is laden with dust or grit and also for supplying high pressure air for conveying and cooling. The PW direct drive blowers are available in 5 sizes ranging from a 7-3/4 to a 13-1/2″ wheel. The CFM range is 70 to 2100 with up to 12″ water gauge. The fans have cast aluminum radial blade wheels.

The PW direct drive fans are designed with a heavy-duty housing and base. All fans are available in either clockwise or counterclockwise rotation and the housings are rotatable up to 8 different positions. All of the fans are available with either single or three phase motors in a variety of enclosures. All direct drive radial blade fans are tested in accordance with AMCA codes and standards.

PW Features

• Peerless Blowers Model “PW” are generally used on industrial applications for small exhaust systems where air is laden with dust or grit and also for supplying high pressure air for conveying and cooling.
• 5 sizes ranging from a 7-3/4 ” wheel to a 13 1/2 ” wheel.
• CFM range: 70 to 2100 with up to 12″ static pressure.
• Cast aluminum radial blade wheels.
• Designed with a heavy-duty housing and base.
• Available in either clockwise or counter-clockwise rotation and the housings are rotatable up to 8 different positions.
• Available with either single or three phase motors in a variety of enclosures.
• Direct drive radial blade fans are tested in accordance with AMCA codes and standards.

Additional information

Technical Data

• • KE PW Series Technical Data
