Description

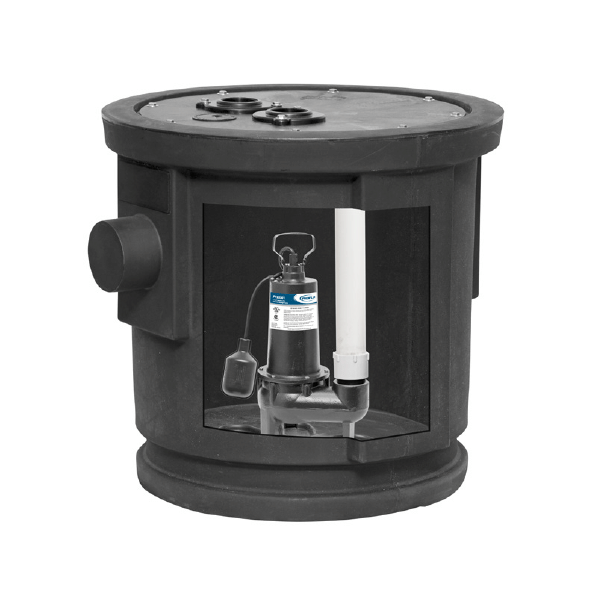

PROFLO PF93024 – 1/2HP Sewage Pump Kit

Pre-assembled kit is ready for installation

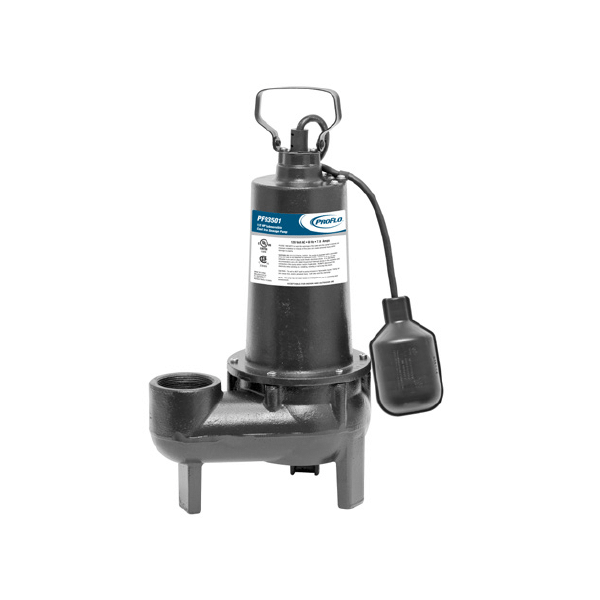

Pump Features

• Kit PF93024 includes pump PF93501 pump
• 1/2 HP continuous duty, thermally protected split capacitor motor
• Tethered or vertical float switch
• Rugged cast iron construction
• Stainless steel, non-clogging vortex impeller
• Will easily handle 2″ solids
• Pumps will lift water up to 25′ of vertical height
• 2″ discharge for high-capacity pumping
• 80 gallons per minute / 4800 gallons per hour

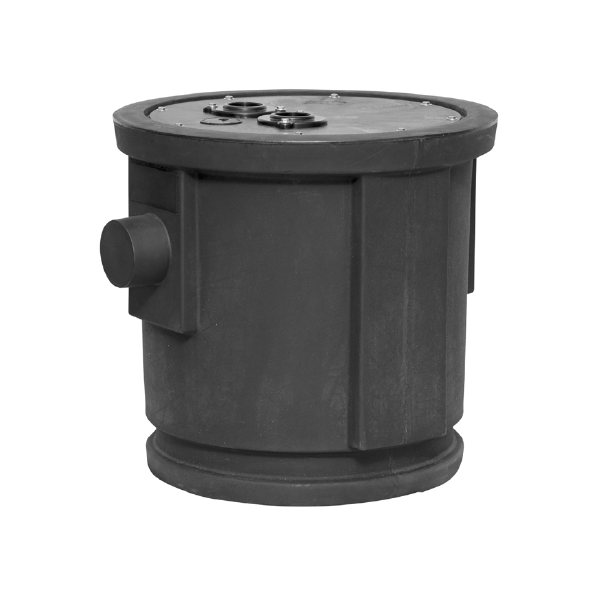

Basin Features

• Tough polyethylene construction
• Corrosion resistant
• 24″ x 24″ – 45 gallon capacity
• Gasket sealed liquid and airtight cover with 8 bolts
• Built-in anti float collar prevents basin from floating
• Pre-plumbed with 2″ PVC
• 2″ NPT discharge and vent
• Integrated 360° lifting handle
• Molded torque stops prevent pump from turning
• Solid 1 piece lid

Additional information

Technical Data

• • PROFLO PF93024 Technical Data
