Description

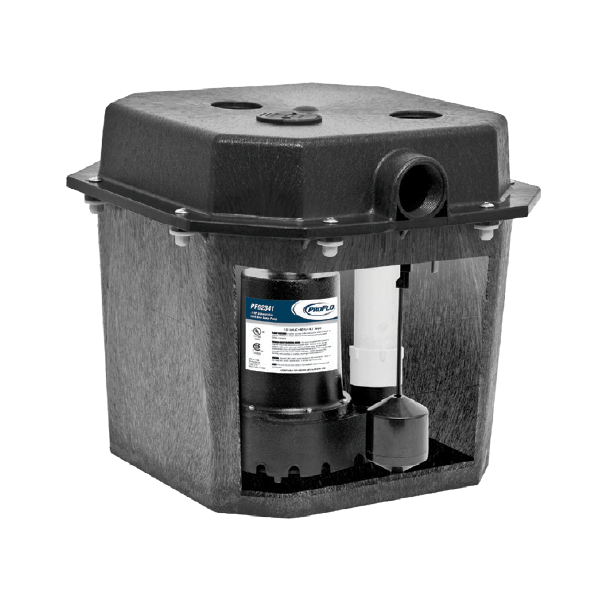

PROFLO PF92017 – 1/3HP Remote Drain Pump Kit

Pre-assembled kit is ready for installation
Works great for laundry tubs, washing machines, wet bars and dehumidifiers

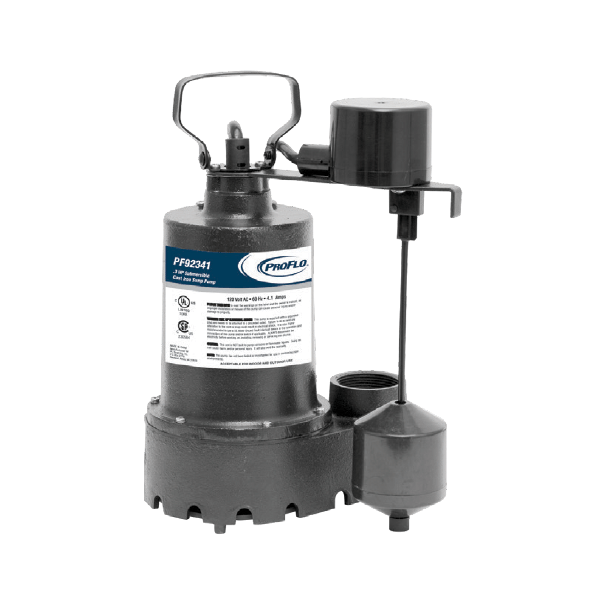

Pump Features

• Model PF92341 sump pump
• .3 HP continuous duty, thermally protected split capacitor motor
• Vertical float switch
• Rugged cast iron construction
• Stainless steel impeller
• Handles 3/8″ solids
• Pumps up to 46 gallons per minute / 2760 gallons per hour

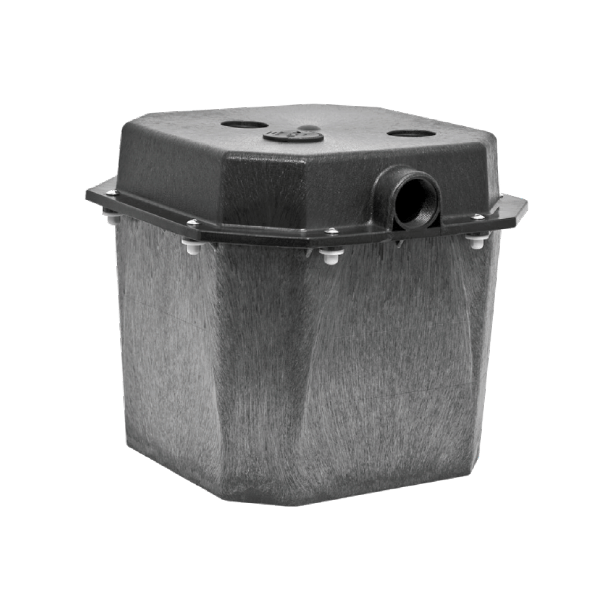

Basin Features

• Structural foam construction
• Molded reusable PVC seal
• 6 gallon capacity
• Size: 15″ x 15″ x 13.5″
• 1-1/2″ inlet discharge & vent

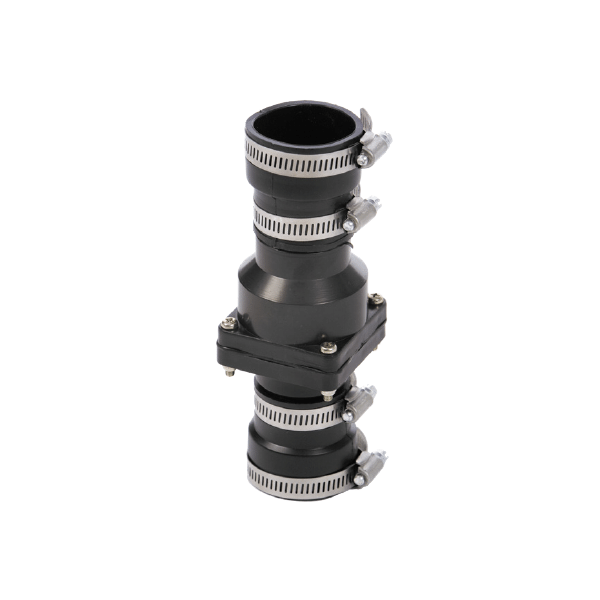

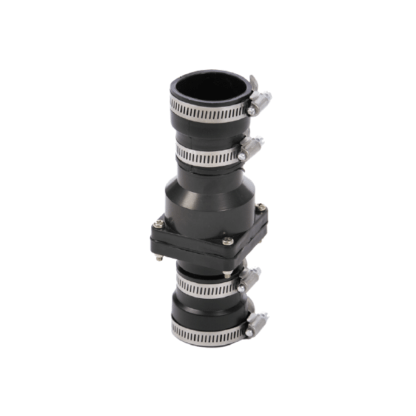

Check Valve Features

• Model PFCVJH check valve
• Prevents backflow of water and sewer gases
• Flexible 1-1/4″ or 1-1/2″ rubber slip X slip connections
• PVC body
• All stainless steel clamps
• Connections fit PVC, ABS, copper or steel pipe
• Vertical or horizontal installation
• 125 psi @ 176°F

Additional information

Technical Data

• • PROFLO PF92017 Technical Data
