Bell and Gossett

PL Series

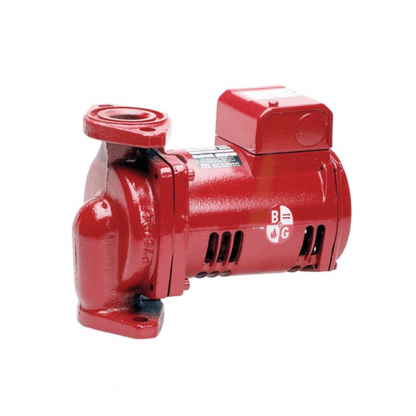

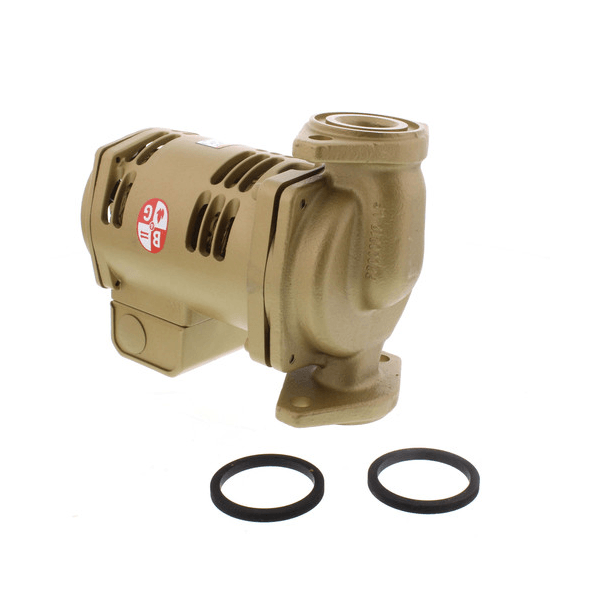

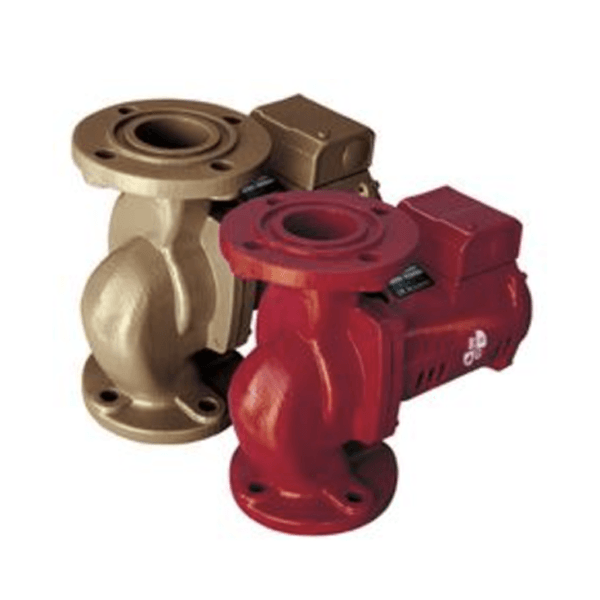

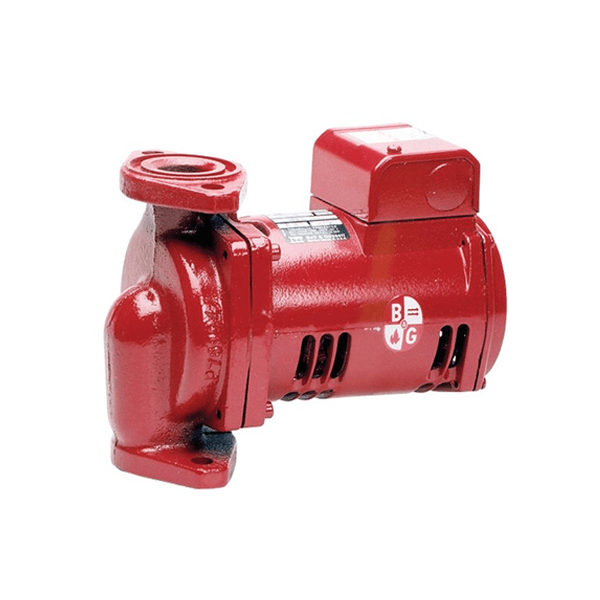

These close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems.  These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

Please contact us for a quote



  • Description

    The Series PL close coupled booster pumps are specifically designed for quiet operation in hyrdronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.

    Operating Data

    • Maximum working pressure – 150 psi (10.3 bar)
    • Maximum operating temperature – 225°F (107°C)

    Features and Benefits

    • B&G’s powerful, dry-motor design delivers exceptional performance
    • 25% more efficient than competition
    • Precision-machined and balanced alloy steel rotor for superior performance.
    • Solid “Stiff-Shaft” design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
    • XL-11™ Precision-Crafted Bearing System
    • Permanently oil lubricated
    • Completely maintenance free
    • Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
    • Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
    • Double sided stainless steel neck ring for optimum efficiency
  • Additional information

    Pump Type 2-Piece Circulators
    Series PL, PL-130, PL-30, PL-36, PL-45, PL-50, PL-55, PL-75
    Manufacturer Bell and Gossett
