Pentair PCD-1000 Submersible Pump

Please contact us for a quote



  • Description

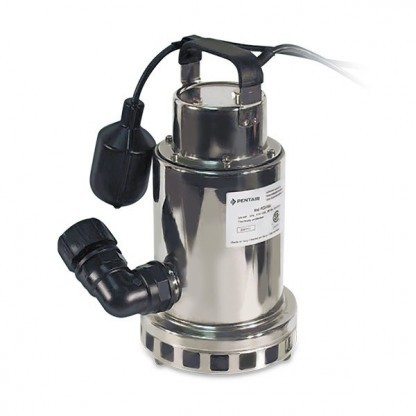

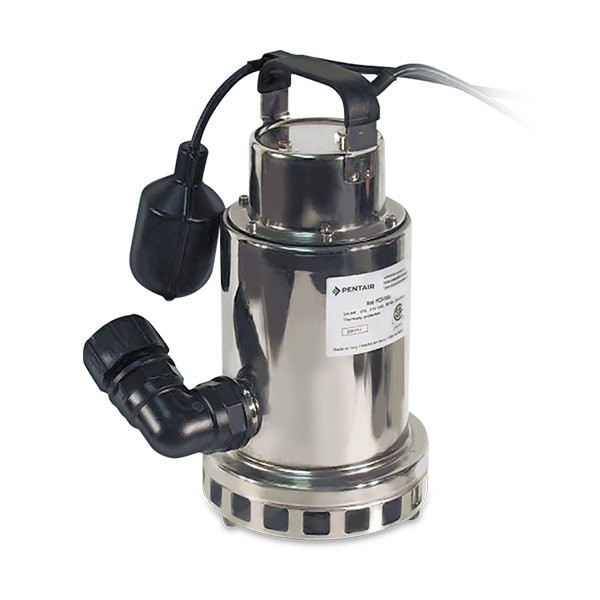

    Pentair PCD-1000 Submersible Pump

    Stainless Steel Submersible Pool Service Pump

    The PCD-1000 Submersible Pump is designed for swift pool draining and utility applications. Constructed with stainless steel components, it provides excellent corrosion resistance and long service life. This sump pump is also equipped with automatic thermal overload protection to prevent premature failure from overheating.

    Debris and stones up to ¾ in. will pass through the pump and an ample 1-1/4 in. discharge port provides fast draining performance. An optional external float switch is included for automatic operation.

    Pump Performance
    Switch SettingPump Performance TDH/GPMShut Off Head
    ModelHPMotor Full Load (Amps)RPMMinimum Circuit Req.Liquid Temperature RangeOnOffPump Down ToTDH5'10'15'20'26.2'
    PCD-10003/46.4345015 amps32/130 degrees F 12" 30cm6" 15.2cm1 3/8 ' 3.5cmGPM45.534.021.512.0N/A
  • Additional information

    Manufacturer Pentair
    Pump Type Pool Pumps, Pool, Spa and Hot Tub Pumps, Submersible Pumps
    Series PCD-1000
    Models PCD-1000
