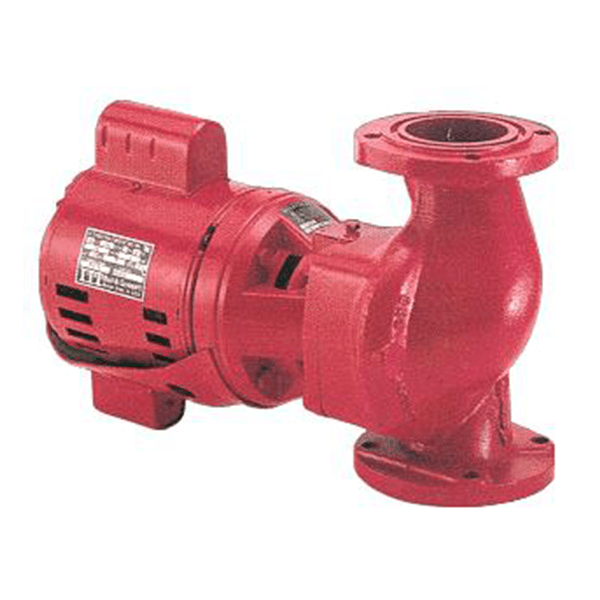

Bell and Gossett

PD & LD3 Series

For applications requiring higher flow and head pressures Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on three-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable B&G manufactured motor for quiet and efficient operation.

Please contact us for a quote



  • Description

    For applications requiring higher flow and head pressures Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on three-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable B&G manufactured motor for quiet and efficient operation.

    Operational limits:

    • These pumps are designed to pump liquids compatible with their iron or bronze body construction.
    • This pump line delivers maximum capacities from 100 GPM to 150 GPM.

    Unless special provisions have been made by Bell & Gossett, the operational limits for Series 2½”, LD3, HD3, PD35, PD37, PD38 and PD40 Pumps are listed below.
    Do not exceed these values:

    • Max. Working Pressure: 125 psi
    • Max. Operating Temperature: 225°F
    • Electrical Rating: 115/230V, 60 Hz, 1PH
      • 208-230/460V, 60 Hz, 3PH
      • 115V or 230V, 60 Hz, 1PH (¼ HP only)

    Applications:

    Bell & Gossett Booster Pumps may be used for hydronic heating and cooling systems, domestic water, industrial applications and general service operations. Bell & Gossett recommends that bronze constructed pumps be used for pumping potable water.

    Motors with special electrical characteristics are available on request.
    Contact your local Bell & Gossett Representative for details.

  • Additional information

    Pump Type 3-Piece Circulators
    Series LD-3, PD, PD-35, PD-37, PD-38, PD-39+, PD-40
    Manufacturer Bell and Gossett
    Models
    ,
    • Technical Data
    • PD
    • Performance
    • PD
    • Parts
    • PD
    ,
    ,
    ,
    ,
    ,
  • Technical Data

  • Parts

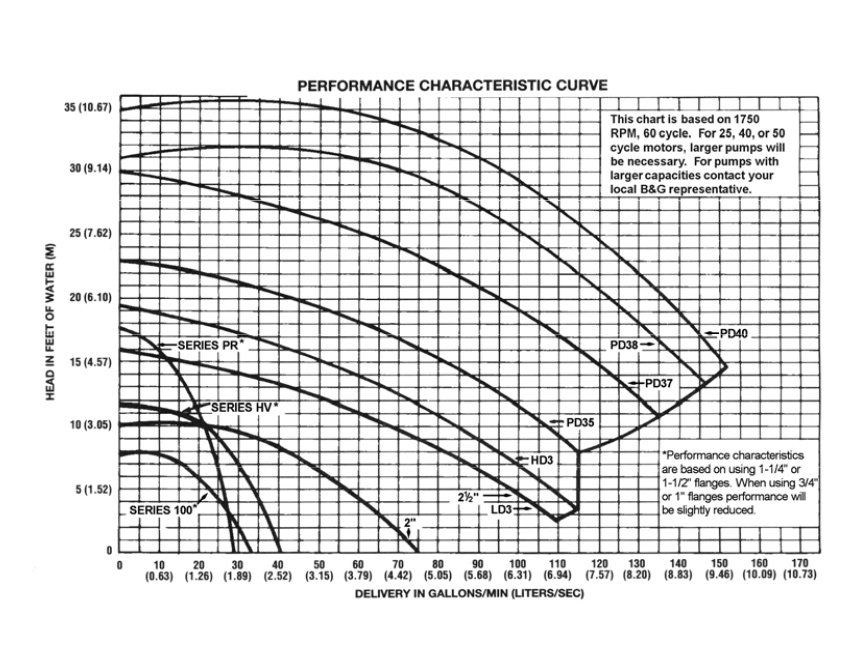

  • Performance Curves
