Description

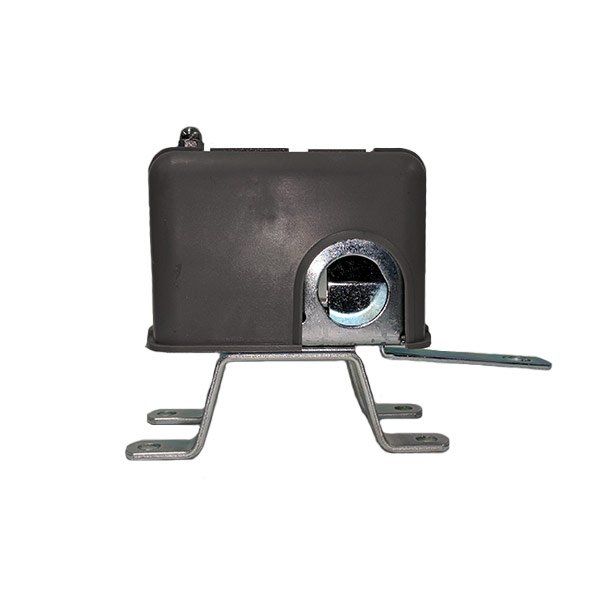

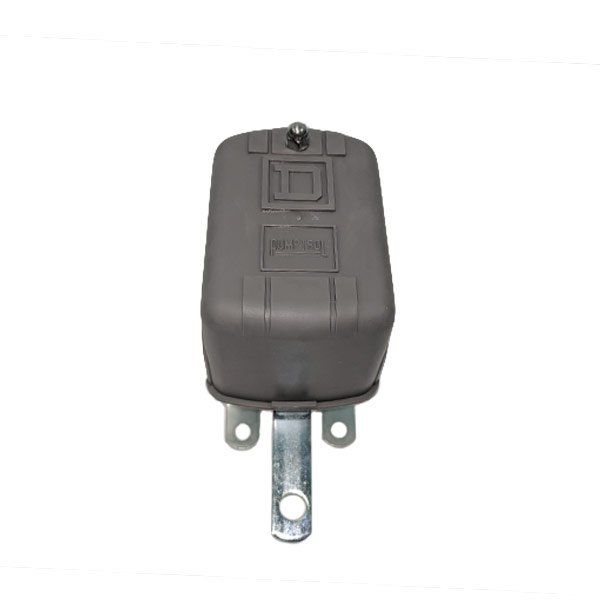

The Class 9036, 9037 and 9038 Type D and G float switches are lever operated and designed for open tank applications. These switches are floor mounted, or they can be pedestal mounted using mounting plate 9049UMS1. They are available in NEMA Type 1, Type 4, or Type 7 and 9 enclosures.

Standard action float switch contacts, which normally close on liquid rise, may be ordered in a reverse action configuration. Contact action can also be converted in the field by installing the appropriate float rod lever.

A compensating spring supports the weight of long rods that cannot be supported by center-hole floats.
