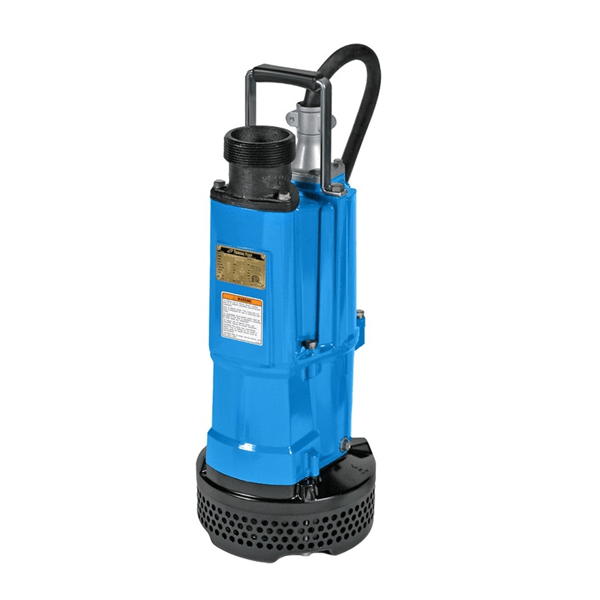

Tsurumi Pump – NK Series

The NK-series is a submersible single-phase portable drainage pump having a larger output motor. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.

Please contact us for a quote



  • Description

    NK Series

    The NK-series is a submersible single-phase portable drainage pump having a larger output motor. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.

    Features

    • Synthetic Rubber Wear Parts for maximum durability and pump performance.
    • Continuous duty air-filled motor
    • Ductible iron semi-vortex impeller
    • Dual voltage available on NK2-15 model
    • OPTIONAL ACCESSORIES
      • TS-303 Float Switch for automatic operation (220V only).

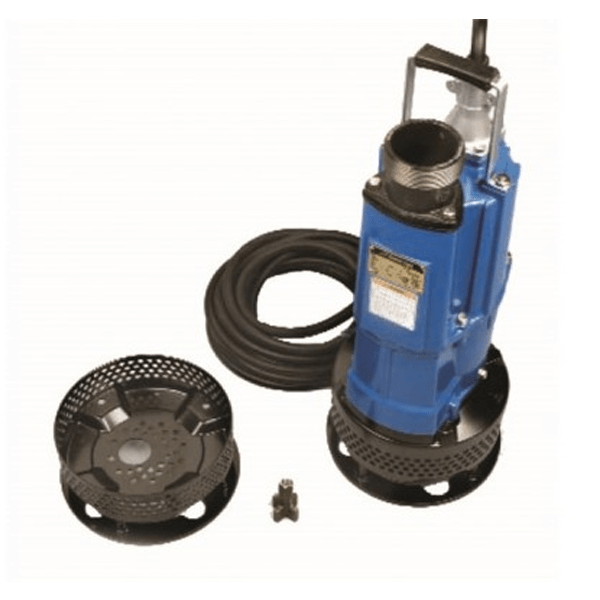

    • Agitator kit to suspend solids and prevent clogging.
    • 2-inch NPT coupling available.
    Discharge Bore (mm) Model Motor Output (kW) Phase Starting Method Solids Passage (mm)
    50 NK3-15 1.5 Single Capacitor Start 8.5
    50 NK4-22 2.2 Single Capacitor Start + Capacitor Run 8.5
    80 NK3-22L 2.2 Single Capacitor Start + Capacitor Run 8.5
  • Additional information

    Pump Type Effluent Pumps
    Series NK
    Manufacturer Tsurumi Pump
